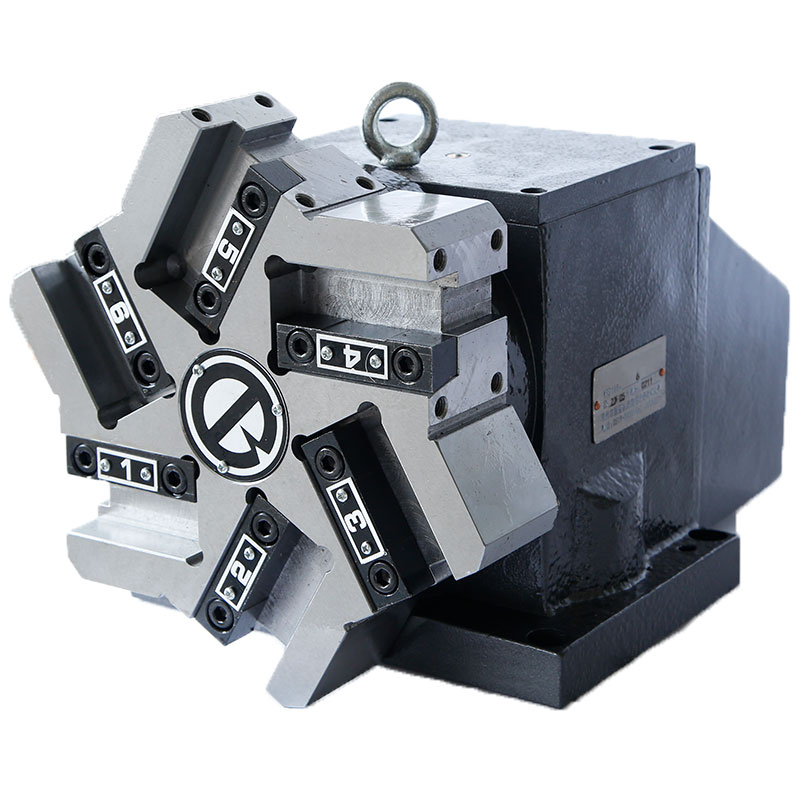

WD Series

Unidirectional  choose  tool,  Non-Contact  transmitter , gear-teeth   Precise positioning, camlock-type ,compact-contruct and reliable.It suites for all kinds of lathes whose grades is lower than C6140


Product Drawings


Product Parameters



Model Dimension
HABC    DEFGIJKLMNOPQRSTUVWXYZ
WD100*-65910113   133372791721025116211520130451443880106891441641004516
WD118-67815113   16055305200133232517252518467200101401401031852241187320
*: This type only has 6 stations
N: is the maximum self-boring diameter; please consult separately for the dimensions of 8-station, rear-mounted and non-standard cutterheads.
MAIN SPECIFICATIONS


Model
changing time(s)Max.allowable
torque(Nm)
The max bias
torque(Nm)
Repeatability
accuracy
( mm )
Indexding

accuracy
Motor
power
(w)
Motor
speed
(r/min)
Net
weight
(kg)



60°120°300°axialtangential


WD100-61.523.5600
600
8<0.005±7''60140025
WD118-61.523.51200120010<0.005±7''120140040
