TLDB Series

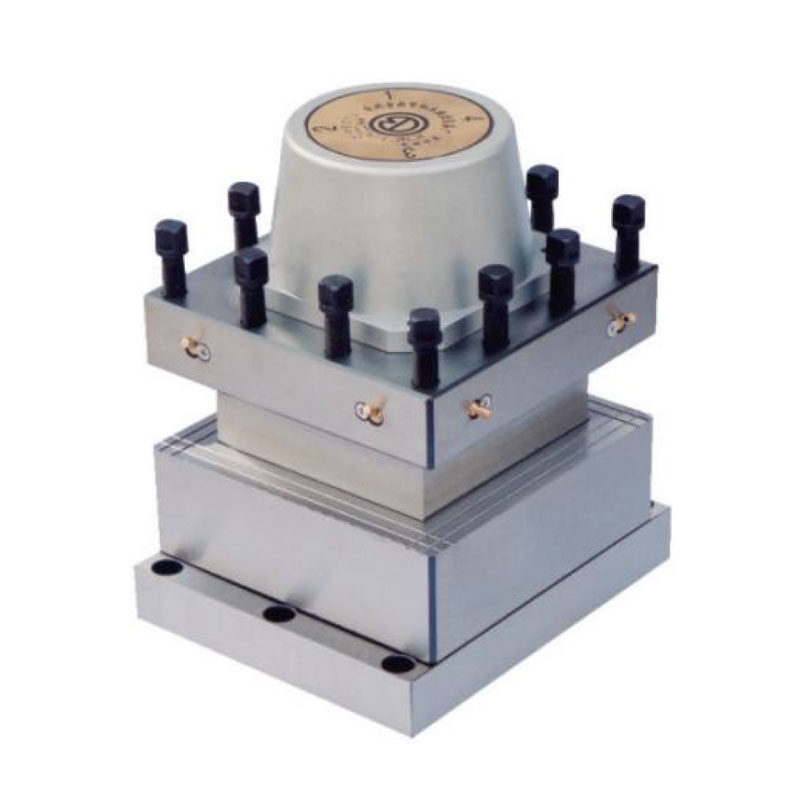

Three gear-teeth location built-in motors, good appearance ,camlock-type and tool changing fast. It suites for all kinds of lathes whose grades is higher than C6132.


Product Drawings


Product Parameters



ModelDimension
HH1hABCDFNΦ1Φ2
TLDB4-70/ 180709242180222146200204011Φ8 Taper pin hole
TLDB4-81/2008112248200245168220255213Φ10 Taper pin hole
TLDB4- 120/24012027342240286200262326013Ф13 Mounting holes
MAIN SPECIFICATIONS


ModelChanging tool
time
Max allowable torqueRepeatability
accuracy
(mm)
Motor
power
(w)
Motor
speed
(r/min)
Net weight
(kg)

90°MqMs/Mx
TLDB4-70/ 1801.61100500﹤0.00590140029
TLDB4-81/2001.61400600﹤0.00512090041
TLDB4- 120/2402.530001100﹤0.005250900125
