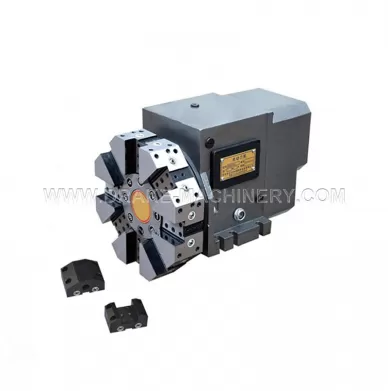

SV Series Servo Turret

1 、Servo motor is used for tool indexing, fast tool change speed, two-way indexing for nearby tool selection.

2 、Internal  servo  motor,  compact  structure,  with  high reliability.

3、Three-piece precision end gear disc and hydraulic locking device, high positioning accuracy, reliable locking, suitable for heavy cutting.

4 、Precision  reduction  mechanism,  low  noise,  high  load torque.

5  、Can be specially  customized  according  to  the requirements of 4, 5, 6 and other work stations.

6、Equipped with special controller for servo turret, realizing real-time monitoring of turret operation.

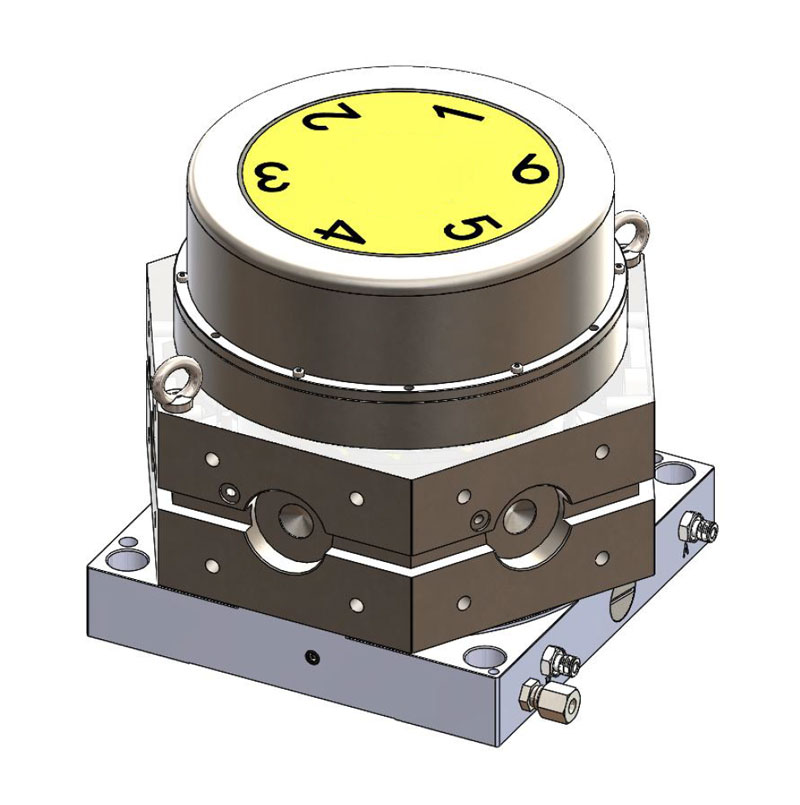

Product Drawings


Product Parameters



ModelDimension
HABCDEFPGJ
SV300125300300260Φ60Φ12Φ17.5300PT3/8PT1/4
SV320125320300260Φ60Φ12Φ17.5320PT3/8PT1/4
SV380160350400300Φ80Φ12Φ21380PT3/8PT1/4
  MAIN SPECIFICATIONS
 ItemModel
SV300SV320SV380
Center Heightmm125125160
Allowed number of tools
4/5/65/65/6
Time for 45° ratation and clamping60°0.850.851.2
72°111.2
90°1.21.2-
Clamping forcekgf7800930013300
Hydraulic working pressureMpa5±0.55±0.55±0.5
Flow rateL/min252530
Indexing Accuracy
±4″±4″±4″
Accuracy of repeatability
±1.6 ″±1.6 ″±1.6 ″
Net weight(without tool disc)kg100120180
