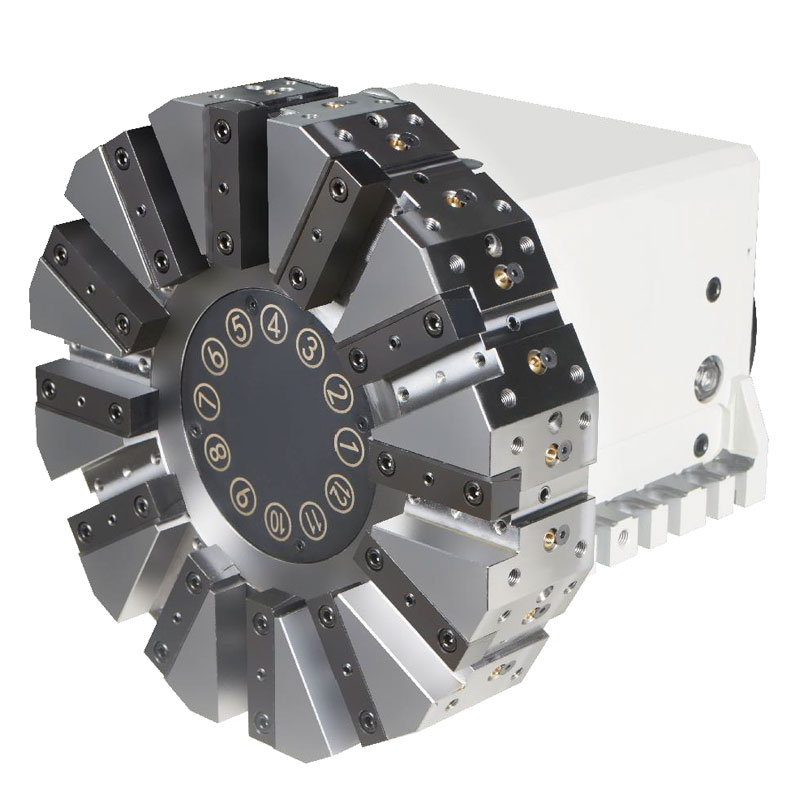

ST Series Servo Turret

2. locking gear plate cylinder structure, smoother locking action;

3. Gear set reduction mechanism, strong rigidity of the transmission system

4. Can be customized 30bar. 50bar. 70bar high pressure cooling

Next Product Inquire Now

Product Parameters

Model	Dimension
	H	A	B	C	D	F	G		J	K	L		M	N	Q	R	S	T	U	V
ST80	80	225	350	312	14	25	Φ17		7.5	290	80/90		PT1/4	PT1/4	95	70	35	35	11	45
ST100	100	232	368	350	14	28	Φ20		9	320	90		PT3/8	PT3/8	110	60	40	30	13	45
MAIN SPECIFICATIONS
Item												Model
												ST80				ST100
Center Height								mm				80				100
Allowed number of tools												8；12				8；12
Time for 45° ratation and clamping								Sec.				1.1				1.4
Time for 180° ratation and clamping								Sec.				1.4				1.9
Clamping force								kgf				2800				3200
Hydraulic working pressure								Mpa				3.5±0.5				3.5±0.5
Flow rate								L/min				22				25
Indexing Accuracy												±4″				±4″
Accuracy of repeatability												±1.6 ″				±1.6 ″
Net weight(without tool disc)								kg				68				88
