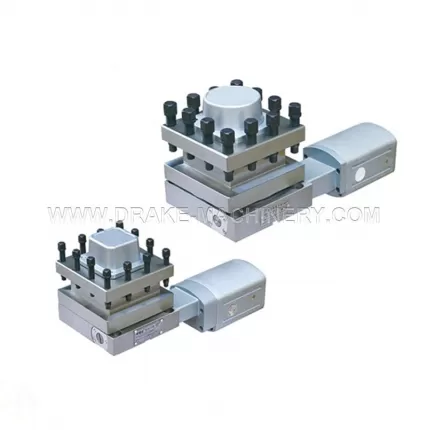

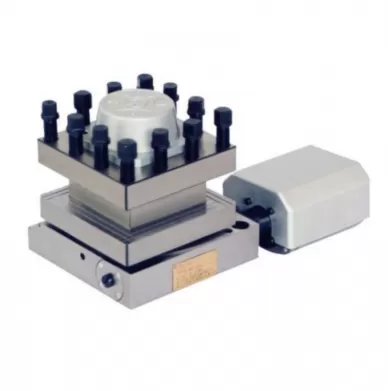

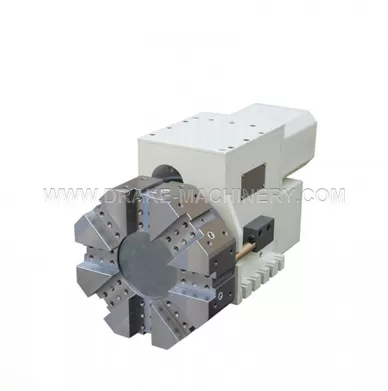

LD4B series vertical NC turret adopts the working principle of worm wheel and worm for driving, 3 pieces face gear coupling as fine indexing mechanism, big screw for clamping,sending signal with Hall unit. It features steady rotating, indexing without tool-holder disk lifting. It is as popular product for NC lathe. The nc turret is an essential component in CNC machining, designed to efficiently hold multiple tools. A 4-station tool turret or quad turret lathe allows quick tool changes during machining. The 4 station automatic tool turret enhances productivity by automating the process. A turret tool post is commonly used in an nc lathe, providing precision in tool positioning. In modern CNC systems, the turret in cnc machine or tool turret in cnc is a crucial element for streamlining operations. Understanding what is turret in cnc machine is key to optimizing machine tool performance.
1. Confirm various parameters when choosing models of turret. Choose the number of stations according to quantity of part procedure and complicacy.
2. Choose tool specifications according to model of machine tool and cutting force. Choose the front type or rear type tool turret according to the cutting directions of the machine tool.
3. After the mounting of boring cutter seat of horizontal turret, Self-bore the inner hole according to the size of boring bar and make a corresponding mark. The tool should be fixed in the former position in the later mounting.
4. The distance tool reaching out of upper housing distance is usually not more than 2/3 upper housing size. Please note when placing an order,if more than the limit.
5. Touch by hand or other things is forbidden when turret is running to avoid injury or damage.
6. If customers have any special requirements or changes in parameters, please offer some data and contact with our company.
Drake is a leading enterprise with 15+ years of factory experience, specializing in machine tool accessories and offering OEM & ODM services. We cooperate with over 60 countries and provide one-stop purchasing solutions for for Power Chuck, Collet Chuck, Turret, Tool Holder, Rotary Cylinder, Laser Chuck, Tool magazine, and more. Our strict adherence to international quality standards and comprehensive product range ensures tailored processing solutions for diverse customer needs.
Product Drawings
Product Parameters
| Model/Data | Center height (mm) | Station number | Max.tangential torque(N·m) | Hydraulic pressure(Mpa) | Repeatability accuracy(") | Time of changing tool and lock(s) | |||
| 30º | 45º | 180º | |||||||
| HAK37063 | 63 | 8 | 12 | 750 | 3～3.5 | ±1.6 | 0.21 | 0.21 | 0.51 |
| HAK37080 | 80 | 8 | 12 | 1600 | 3～4 | ±1.6 | 0.23 | 0.22 | 0.52 |
| HAK37100 | 100 | 8 | 12 | 3500 | 3～4.5 | ±1.6 | 0.31 | 0.3 | 0.66 |
| Model/Dim | A | B | C | D | H1 | H2 | b1 | b | h |
| HAK37063 | 230 | 185 | 165 | 133 | 63 | 138 | 11 | 20 | 20 |
| HAK37080 | 260 | 215 | 190 | 165 | 80 | 190.5 | 11 | 25 | 25 |
| HAK37100 | 300 | 255 | 220 | 200 | 100 | 227.5 | 13 | 25 | 25 |
| Model/Dim | L | L1 | L2 | L3 | J | K | M | N | φ1 | φ2 | φ3 |
| HAK37063 | 420 | 65 | 126 | 188 | 19.5 | 30 | 30 | 30 | φ286 | φ338 | φ25 |
| HAK37080 | 445.5 | 76 | 142 | 212 | 25 | 32 | 32 | 32 | φ310 | φ370 | φ32 |
| HAK37100 | 547 | 90 | 155 | 255 | 32 | 40 | 30 | 30 | φ360 | φ420 | φ32 |
