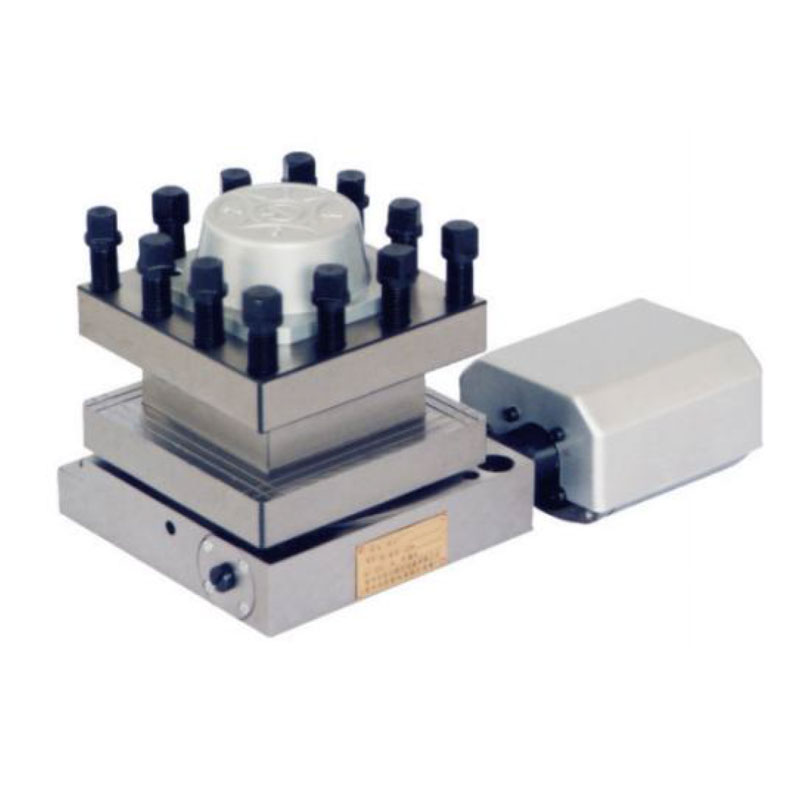

LD Series

Non-Contact transmitter, double-teeth Precise Positioning, lifting screw threads-camping, it possesses reliability, good rigidity and long life and suited for all kinds of lathes whose grades is higher than CO625.

Product Drawings


Product Parameters



ModelDimension
HH1ABCC1    DEE1LL1L2hh1h2FΦ1ZK
LD4-54A/ 11054271261269696   110151535811021313618901594427
LD4-70/ 1527030161171126126   1461212360152220185219025135640
LD4-81/ 1628134192192152152   1682020391162251206239025138440
LD4- 120/20012039200200150130   1772535444200292260279832138950
MAIN SPECIFICATIONS
ModelChanging tool time(s)Max allowable torque
( Nm)
Repeatability
accuracy
(mm)
Motor
power
(w)
Motor
speed
(r/min)
Net
weight
(kg)
90°180°270°MqMsMx
LD4-54A/ 1101.92.43300250700<0.00590140016
LD4-70/ 1522.22.73.35003501100<0.005120140025
LD4-81/ 1622.22.73.36004501400<0.005120140032
LD4- 120/2002.73.44. 17006001800<0.005180140060
