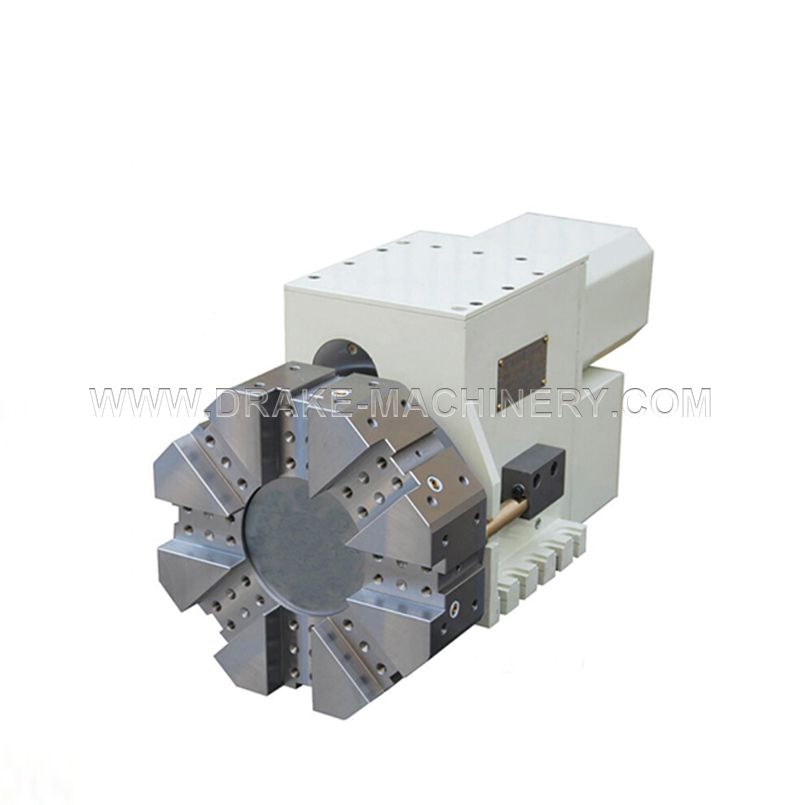

Product Drawings
Product Parameters
| 型号/参数 | 中心高 (mm) | 工位数 | 液压压力 (Mpa) | 流量 (L/min) | 重复定位精度(") | 换刀时间(s) | |||
| 45º | 180º | ||||||||
| HAK36050 | 50 | 8 | 2～2.5 | 12 | ±2 | 0.4 | 1.5 | ||
| HAK36063 | 63 | 8 | 3～3.5 | 12 | ±2 | 0.6 | 1.6 | ||
| HAK36080 | 80 | 8 | 3～3.5 | 12 | ±2 | 0.6 | 1.6 | ||
| HAK36080A | 80 | 8 | 10 | 12 | 3.5～4 | 20 | ±2 | 0.8 | 1.8/2.2/2.5 |
| HAK36100 | 100 | 8 | 10 | 12 | 3.5～4 | 30 | ±2 | 0.8 | 1.8/2.2/2.5 |
| HAK36125 | 125 | 8 | 12 | 4～4.5 | 40 | ±2 | 1 | 2/2.8 | |

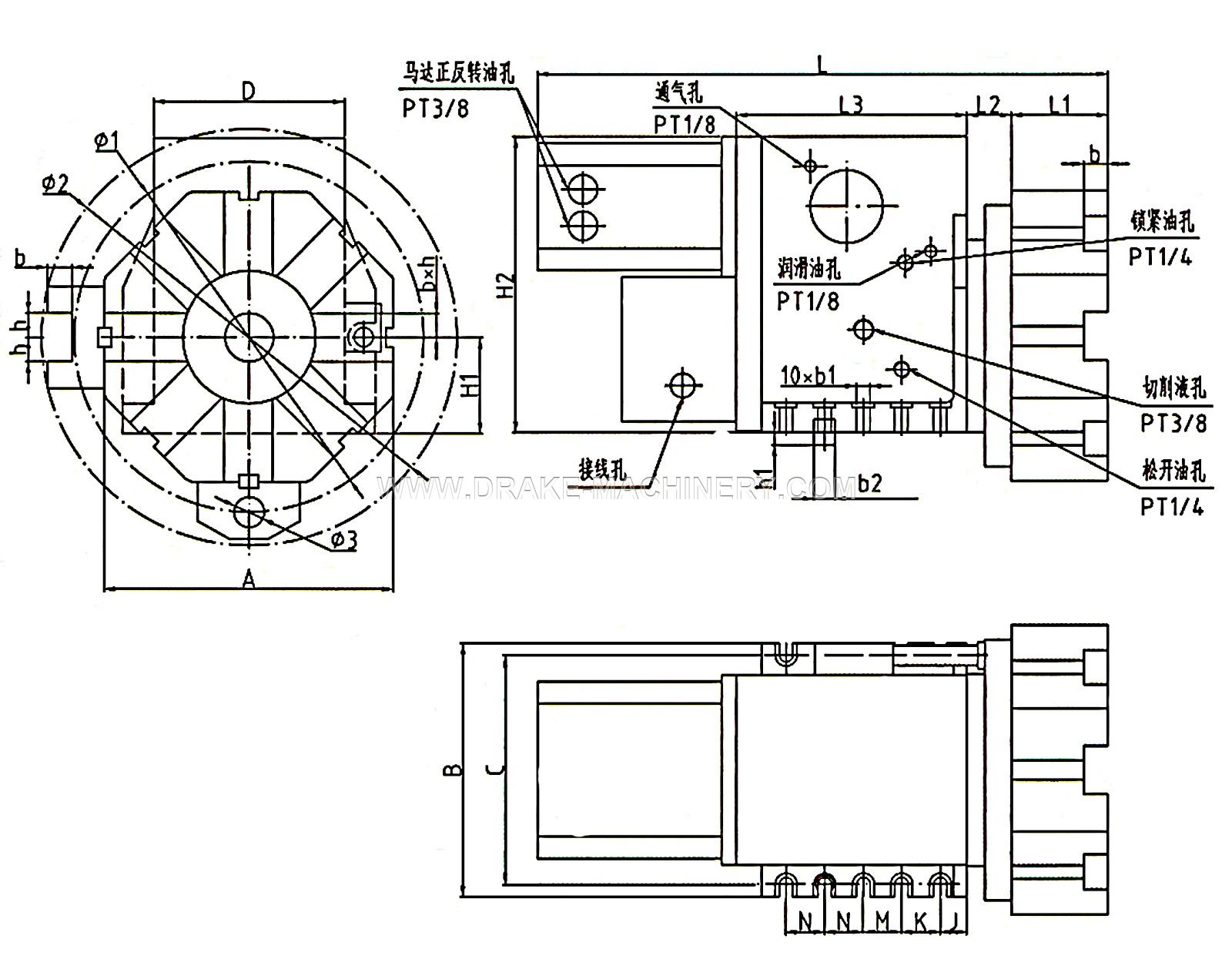

| 型号/尺寸 | A | B | C | D | H1 | H2 | b | b1 | b2 | h | h1 |
| HAK36063 | 228 | 185 | 165 | 148 | 63 | 228 | 20 | 11 | φ15 | 20 | 10 |
| HAK36080 | 240 | 210 | 190 | 158 | 80 | 245 | 20 | 11 | φ17 | 20 | 10 |
| 型号/尺寸 | L | L1 | L2 | L3 | J | K | M | N | φ1 | φ2 | φ3 |
| HAK36063 | 443 | 65 | 38 | 175 | 19.5 | 30 | 30 | 30 | φ272 | φ316 | φ25 |
| HAK36080 | 473 | 80 | 37 | 191 | 22 | 32 | 32 | 32 | φ290 | φ345 | φ25 |

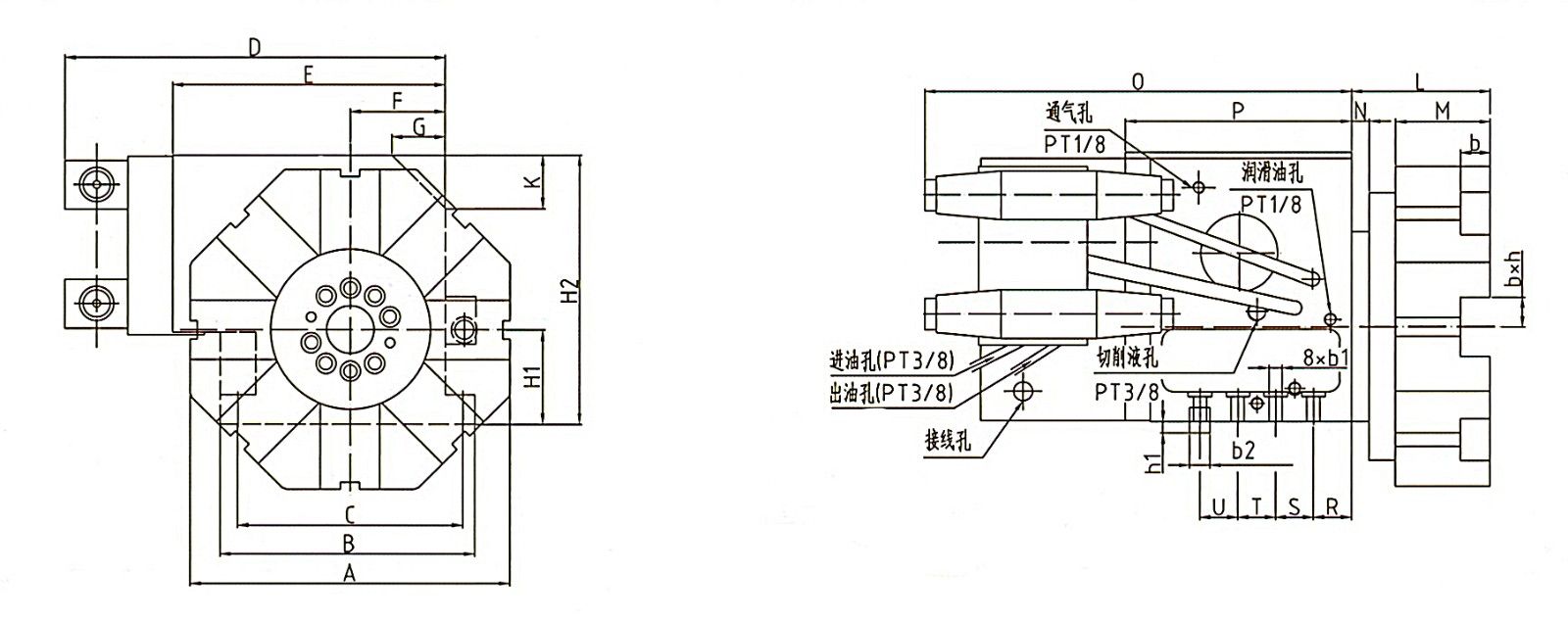

| 型号/尺寸 | A | B | C | D | E | F | G | K | H1 | H2 | L | M |
| HAK36050 | 180 | 150 | 133 | / | 168 | 59 | 41 | 41 | 50 | 155 | 94 | 45 |
| HAK36080A | 270 | 215 | 190 | 330 | 235 | 80 | 45 | 45 | 80 | 227 | 117 | 80 |
| HAK36100 | 300 | 250 | 220 | 365 | 272 | 95 | 45 | 45 | 100 | 290 | 133 | 90 |
| HAK36125 | 420 | 310 | 280 | 360 | 270 | 125 | / | / | 125 | 325 | 137 | 103 |
| 型号/尺寸 | N | O | P | R | S | T | U | b | b1 | b2 | h | h1 |
| HAK36050 | 10 | 300 | 153 | 20 | 30 | 30 | 30 | 16 | 9 | 15 | 16 | 10 |
| HAK36080A | 15 | 365 | 191 | 32 | 32 | 32 | 32 | 25 | 11 | 17 | 25 | 12 |
| HAK36100 | 19 | 380 | 206 | 34 | 40 | 30 | 30 | 25 | 13 | 20 | 25 | 18 |
| HAK36125 | 19 | 403 | 226 | 30 | 44 | 43 | 43 | 32 | 17 | 26 | 32 | 10 |
