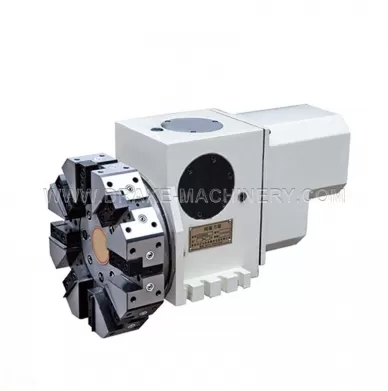

HAK33 Power Turret

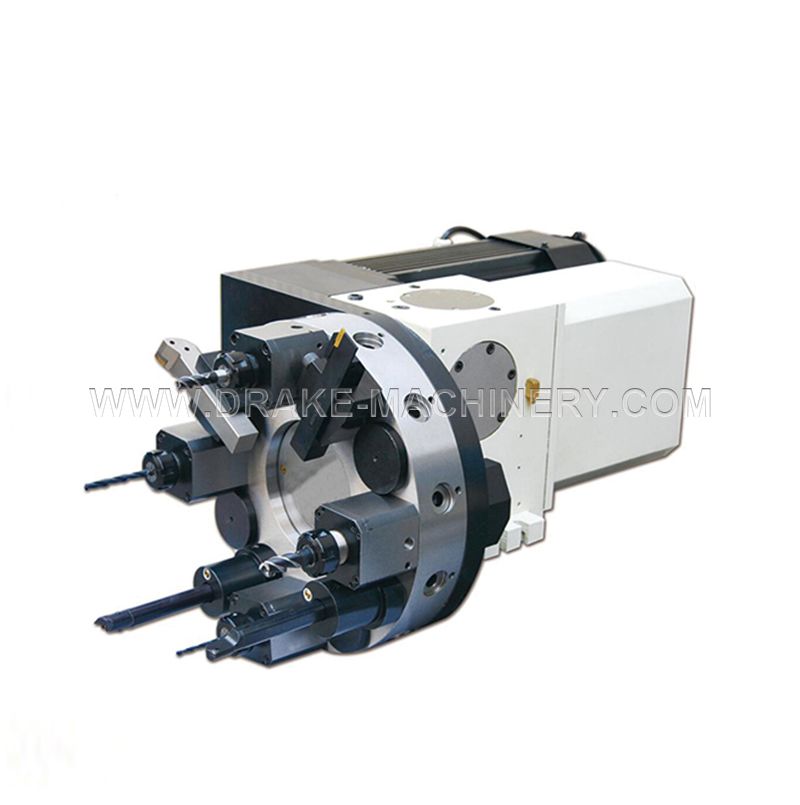

HAK33 series power tooling NC turret is taken servo turret as base and equipped with servo power head. The advantage is fast changing tool and big hydraulic locking force. There can be installed fixed cutting tools in every position and also can be installed rotating cutting tool, so that the lathe can operate for turning, facing, grooving, tapping, milling polygon and caving shape in once hold. This turret is key part of high-grade NC turning center.

1. Confirm various parameters when choosing models of turret. Choose the number of stations according to quantity of part procedure and complicacy.

2. Choose tool specifications according to model of machine tool and cutting force. Choose the front type or rear type tool turret according to the cutting directions of the machine tool.

3. After the mounting of boring cutter seat of horizontal turret, Self-bore the inner hole according to the size of boring bar and make a corresponding mark. The tool should be fixed in the former position in the later mounting.

4. The distance tool reaching out of upper housing distance is usually not more than 2/3 upper housing size. Please note when placing an order,if more than the limit.

5. Touch by hand or other things is forbidden when turret is running to avoid injury or damage.

6. If customers have any special requirements or changes in parameters, please offer some data and contact with our company.
