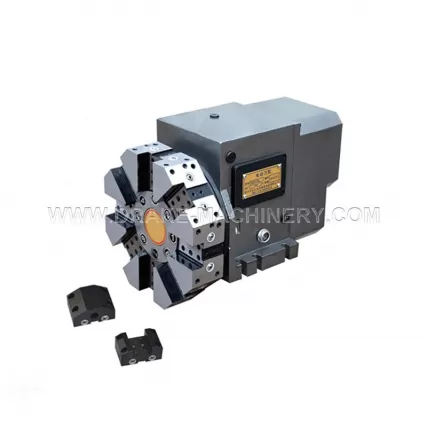

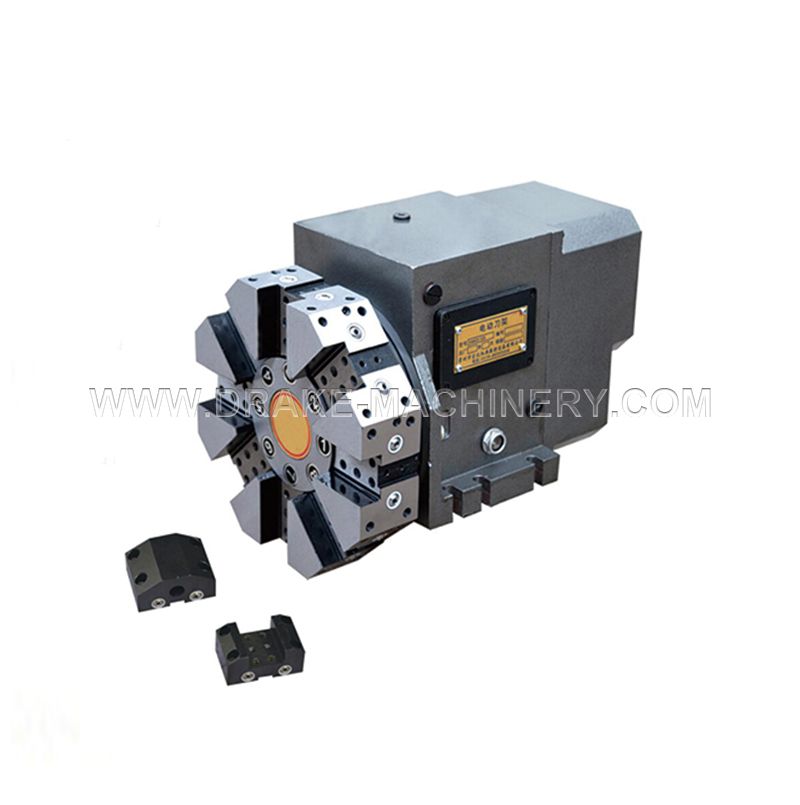

HAK30 Electric NC Turret

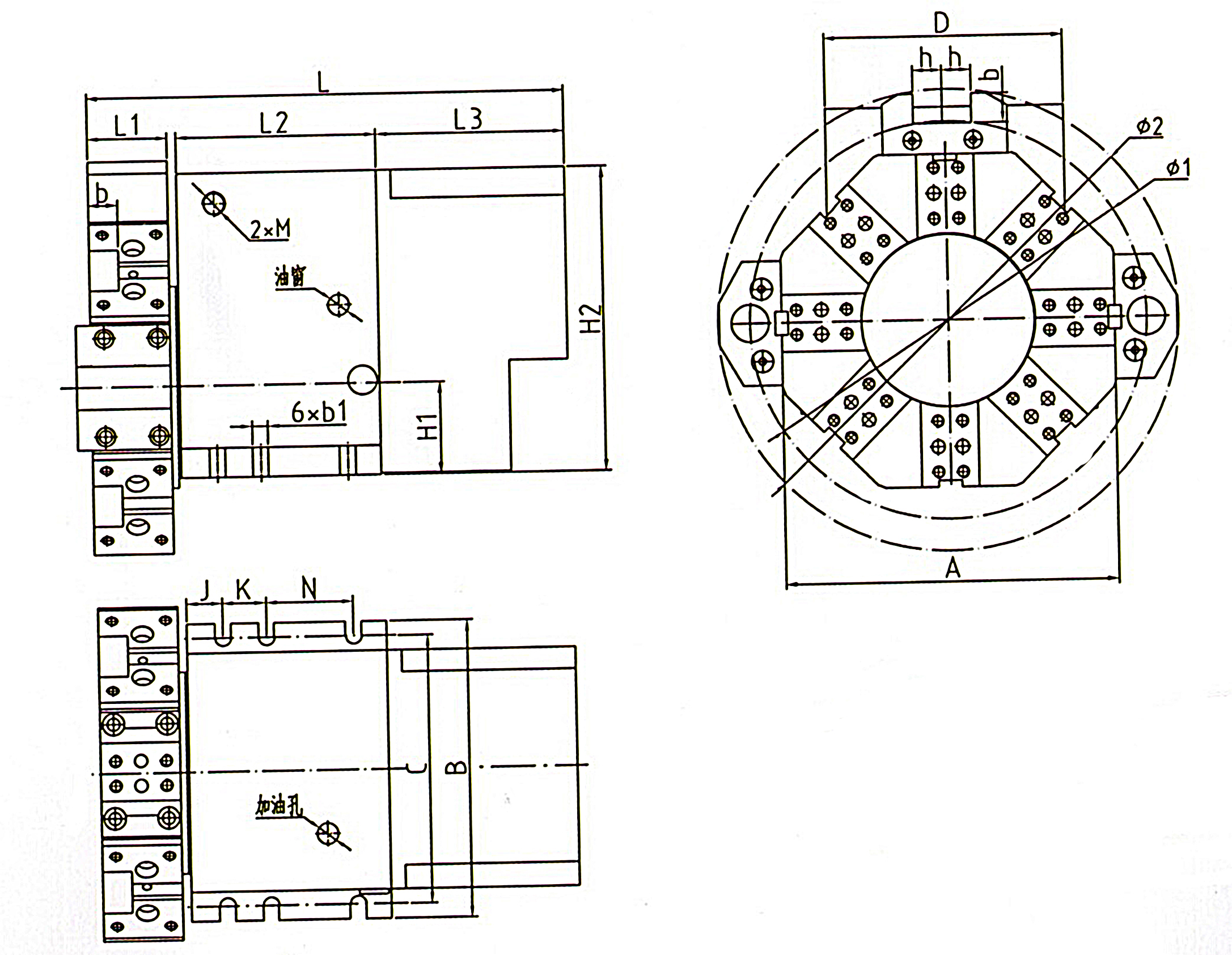

HAK30 series horizontal NC turret adopts the working principle of worm wheel and worm for driving, face gear coupling as fine indexing mechanism, big screw for clamping, sending signal with Hall unit. It features steady rotating, high stiffness, low noise, multi stations,suffering great tangential torque, build-in cooling, operating many processes in once hold. It is the best choice for processing complex parts.

1. Confirm various parameters when choosing models of turret. Choose the number of stations according to quantity of part procedure and complicacy.

2. Choose tool specifications according to model of machine tool and cutting force. Choose the front type or rear type tool turret according to the cutting directions of the machine tool.

3. After the mounting of boring cutter seat of horizontal turret, Self-bore the inner hole according to the size of boring bar and make a corresponding mark. The tool should be fixed in the former position in the later mounting.

4. The distance tool reaching out of upper housing distance is usually not more than 2/3 upper housing size. Please note when placing an order,if more than the limit.

5. Touch by hand or other things is forbidden when turret is running to avoid injury or damage.

6. If customers have any special requirements or changes in parameters, please offer some data and contact with our company.

Next Product Inquire Now

Product Parameters

Please review the following parameter table. We offer various types of rotating hydraulic cylinders. If you need any assistance, feel free to leave your email and questions, and we will arrange for a professional to connect with you!

Performance parameters
Model/Spec	Piston area（cm²）		Highest turnover number min-1（rpm）	Max.working pressure Mpa（kgf/cm²）	(kg.m²）	Total volume of oil drainage	Weight (kg)
Model/Spec	Press side	Pull side	Highest turnover number min-1（rpm）	Max.working pressure Mpa（kgf/cm²）	(kg.m²）	Total volume of oil drainage	Weight (kg)
TK428	53.2	50.5	8000	3.5（35）	0.03	2.0	5
TK536	70.7	62.8	9200	4.5（45）	0.05	2.5	7.7
TK646	99.1	88.0	8000	4.5（45）	0.06	3.0	8.5
TK646(s）	99.1	88.0	8000	4.5（45）	0.06	3.0	8.5
TK852	135.3	125.0	6500	4.5（45）	0.11	3.9	11.8
TK1075	179.5	163.5	5500	4.5（45）	0.24	4.2	21.5
TK1075(s）	179.5	163.5	5500	4.5（45）	0.24	4.2	21.5
TK1291	250.6	234.1	3500	4.5（45）	0.15	4.2	30
TK1512	356.5	335.3	3000	4.0（40）	0.38	7	53.6

Size parameters
Model/Spec	A	B	C	D	E (h7）	F	G1 max	G1 min	G2 max	G2 min	H	J	K	L1	L2	M1	M2	M3
TK428	90	126	100	108	80	40	10	0	23	13	53	88	139	M8*60	14	M33*1.5	25	15
TK536	105	141	115	125	100	48	15	0	38	23	75	110	148	M8*70	14	M42*1.5	25	15
TK646	125	165	140	140	120	65	15	0	38	23	75	110	148	M8*75	15	M55*2	25	15
TK646(s）	125	165	130	147	100	65	15	0	38	23	75	110	148	M8*75	15	M55*2	25	15
TK852	150	185	170	165	130	70	20	0	43	23	77	107	150	M8*75	20	M60*2	30	15
TK1075	175	215	190	190	160	95	25	0	50	25	88	129	180	M10*90	20	M85*2	35	15
TK1075(s）	175	215	190	195	160	95	25	0	50	25	88	129	180	M10*90	20	M85*2	35	15
TK1291	205	248	215	225	180	110	30	0	50	20	95	144	196	M12*100	20	M100*2	35	-
TK1512	250	305	275	280	230	140	30	0	55	25	113	156	245	M12*120	16	M130*2	35	16

Model/Spec	N1	N2	O	O1H8	O2H8	P	Q1	Q2	Rg7	T	U	V	W1	W2	X1	X2	Y1	Y2
TK428	M34*1.5	25	PT1/4	30	28	89	7	28	32	65	86	2	63	80	43	M6*8	76	M5*6
TK536	M44*1.5	28	PT1/4	38	36	107.25	9	32	42	75	98	4.5	61	110	54	M6*8	83	M5*6
TK646	M52*1.5	31	PT3/8	50	46	115	9	32	50	91	116	5	62	119	63	M6*8	98	M5*6
TK646(s）	M52*1.5	31	PT3/8	50	46	115	9	32	50	91	116	5	62	119	63	M6*8	98	M5*6
TK852	M58*1.5	34	PT3/8	55	52	109	9	36	56	100	127	6	77	130	72	M6*8	110	M6*8
TK1075	M84*2	36	PT3/8	80	75	128	12	36	81	124	164	7	98	163	97	M6*8	155	M6*8
TK1075(s）	M84*2	36	PT3/8	80	75	128	12	36	81	124	164	7	98	163	97	M6*8	155	M6*8
TK1291	M99*2	34	PT3/8	-	91	142	10	52	95	142	183	9	110	165	110	M6*8	170	M6*8
TK1512	M129*2	50	PT3/8	126	120	172	17	50	126	170	227	7	134	210	138	M6*8	210	M6*10
