HAK25 Vertical Machine NC Turret

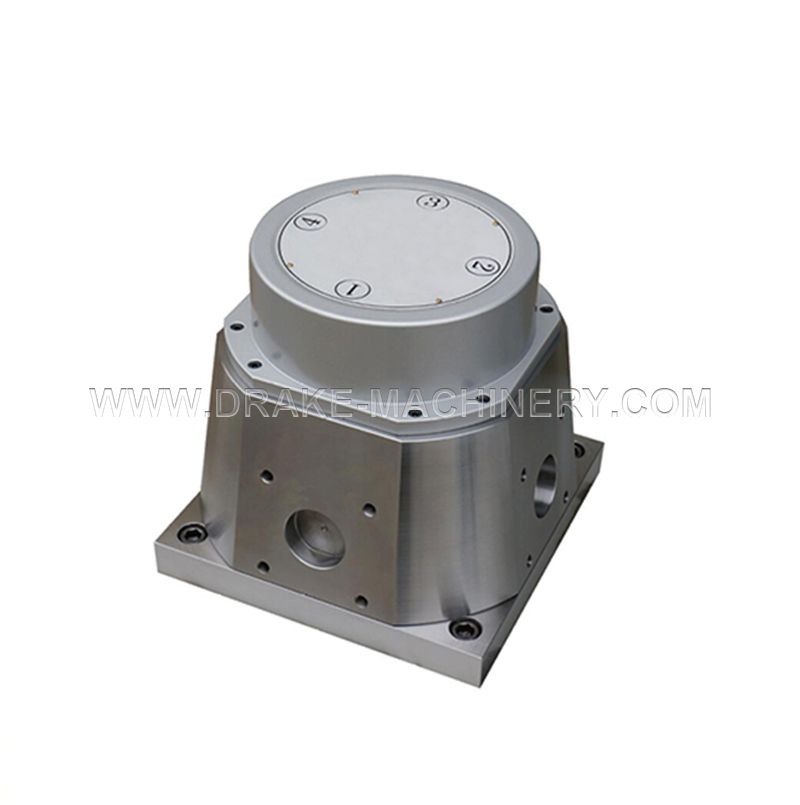

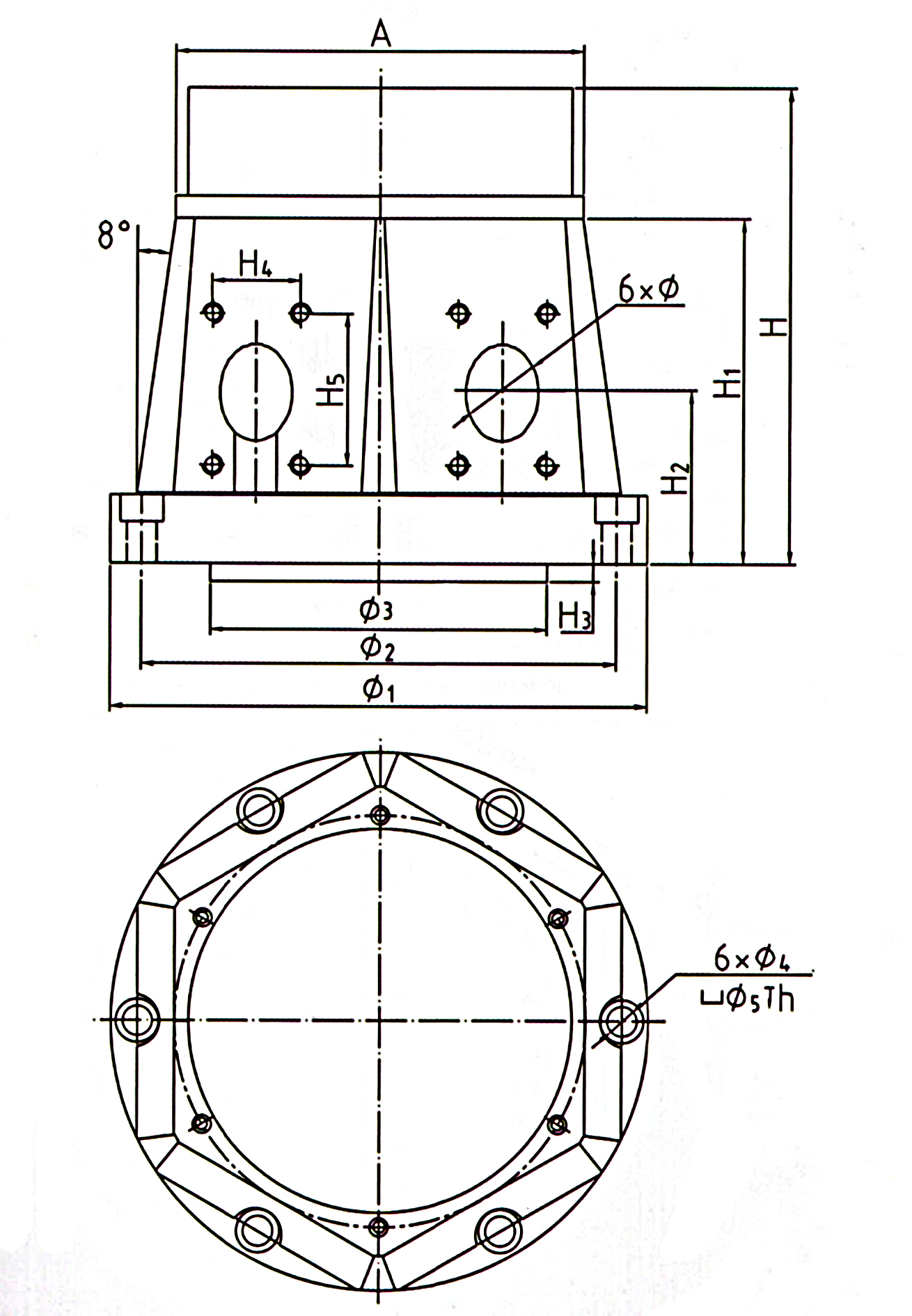

HAK25 series NC turret adopts 3 pieces face gear coupling as fine indexing mechanism, big screw for locking and build-in electric motor structure. It features compact structure, high precision and bearing great capability for cutting force. It can complete many procedures in once hold. It is a key attachment for NC vertical lathe and large-sized NC lathe.

1. Confirm various parameters when choosing models of turret. Choose the number of stations according to quantity of part procedure and complicacy.

2. Choose tool specifications according to model of machine tool and cutting force. Choose the front type or rear type tool turret according to the cutting directions of the machine tool.

3. After the mounting of boring cutter seat of horizontal turret, Self-bore the inner hole according to the size of boring bar and make a corresponding mark. The tool should be fixed in the former position in the later mounting.

4. The distance tool reaching out of upper housing distance is usually not more than 2/3 upper housing size. Please note when placing an order,if more than the limit.

5. Touch by hand or other things is forbidden when turret is running to avoid injury or damage.

6. If customers have any special requirements or changes in parameters, please offer some data and contact with our company.

Next Product Inquire Now

Product Parameters

Please review the following parameter table. We offer various types of rotating hydraulic cylinders. If you need any assistance, feel free to leave your email and questions, and we will arrange for a professional to connect with you!

Performance parameters
Model/Spec.	Piston area (cm²)		Stroke (mm)	Hightest turnover number min-1(rpm)	Maximum working pressure MPa(kgf/cm²）	GD2 (kg.m²)	Total volume of oil drainage	Weight (kg)
Model/Spec.	Press side	Pull side	Stroke (mm)	Hightest turnover number min-1(rpm)	Maximum working pressure MPa(kgf/cm²）	GD2 (kg.m²)	Total volume of oil drainage	Weight (kg)
TH428	53.2	50.5	10	8000	4.0(40)	0.02	3	5.8
TH536	69.8	67.5	15	8000	4.0(40)	0.05	3	8.5
TH646	97.3	87.9	15	7000	4.0(40)	0.09	3	13.5
TH852	146.8	136.6	20	6200	4.0(40)	0.2	3.9	16.4
TH1075	196.2	182	25	4700	4.0(40)	0.4	4.2	25.8
TH1291	250.6	234.1	30	3800	4.0(40)	0.61	4.5	33
TH1512	345.4	334.6	30	2800	4.0(40)	1.5	7	50

Size parameters
Model/Spec.	A I.D	B	C	D	E (h7)	F	G1 max.	G1 min.	G2 max.	G2 min.	H	J	K	L	M1	M2	N1	N2
TH428	90	130	120	100	80	40	10	/	35	/	45	127.5	155	6-M8×15	M33×1.5	25	M34×1.5	26
TH536	105	150	135	115	100	50	15	/	40	/	47.5	125.5	170.5	6-M10×20	M42×1.5	25	M44×1.5	28
TH646	125	169	156	130	100	65	15	/	40	/	60	135.5	193.5	12-M10×20	M55×2	30	M52×1.5	32
TH852	150	198	188	170	130	70	20	0	45	25	66	145	198	12-M10×20	M60×2	30	M58×1.5	34
TH1075	175	225	213	190	160	95	25	/	50	/	62	166.5	231	12-M10×22	M85×2	35	M84×2	40
TH1291	205	255	240	215	180	110	30	/	55	/	64.5	180.5	250	12-M12×24	M100×2	35	M99×2	46
TH1512	250	315	305	275	230	140	30	/	55	/	68	193	273	12-M16×32	M130×2	45	M134×2	46

Model/Spec.	01 H8	02 H8	P	Q1	Q2	Q3	R (g7)	S	T	U	V	W1	W2	X1	X2	Y1	Y2
TH428	30	28	101.5	11	24	PT1/4	32	45	65	88	4	72	105	/	/	76	M4×7
TH536	38	36	119	11	24	PT1/4	42	55	80	98	4	80	110	/	/	83	M5×10
TH646	50	46	127.5	12	30	PT3/8	50	70	95	116	4	98	125	62	M4×8	98	M5×10
TH852	55	52	135.5	12	32	PT3/8	56	75	100	128	4	100	130	67	M4×8	110	M6×10
TH1075	80	75	153.5	17	36	PT3/8	81	100	125	158	5	115	160	92	M4×8	145	M6×10
TH1291	95	91	165	21	34	PT1/2	96	120	142	180	5	136	185	110	M4×8	165	M6×10
TH1512	125	120	176.5	23	40	PT1/2	130	160	204	218	6	160	210	171	M6×10	215	M6×10
