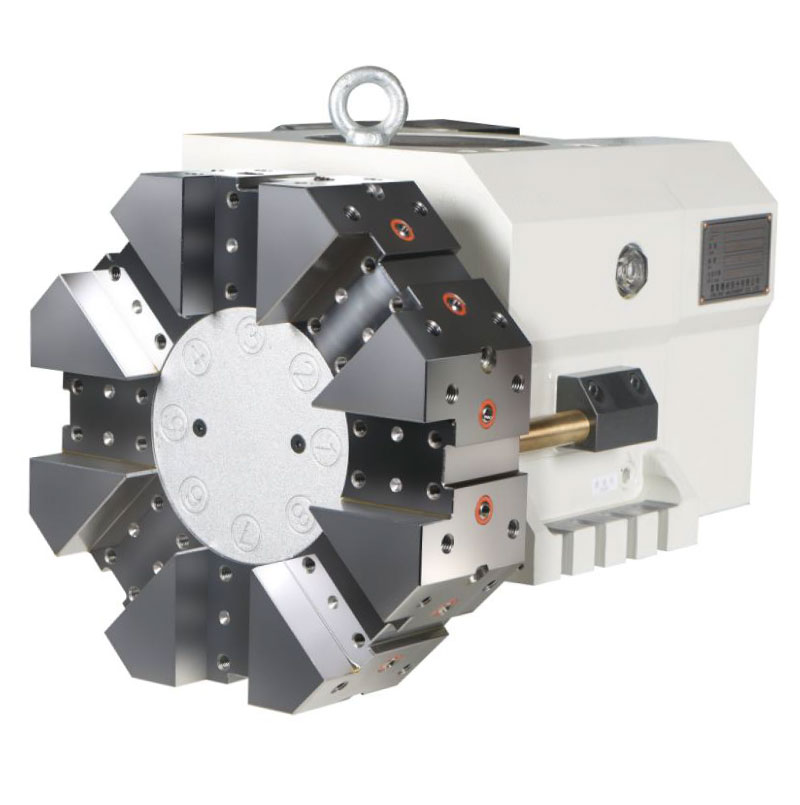

CLT Series Cam Hydraulic Turret

1. Inside mechanism employs cam, high indexing accuracy and fast tool change

2. Driven by hydraulic motor,high torque output and tools change stability.

3.  Tool  release  clamping  adopts   hydraulic   mechanism, reliable action, suitable for heavy cutting.

4. Controlled by proximity-detector and PLC programming, smart selection of nearby tools

5.  Can  be  customized  30bar.  50bar.  70bar  high  pressure cooling。


Product Drawings



Product Parameters



ModelDimension
HABC   DEFGKMNOPRSTU
CLT63-86322832636   155189- 1116518514699Φ15819.5303030
CLT80-88024533942   1702210- 11190210158106Φ177.522323232
CLT80A-88022734943   166258- 11190220235286Φ177.532323232
CLT100-810029337043   175308- 13220250272307Φ20934403030
   Turret specifications And Accessories
 ModelCLT63   CLT80CLT80ACLT100
Opposites side8T228280270330
300370
330
12T
340340380
Boring    ToolΦ20    Φ25    Φ32    Φ32      Φ40Φ32      Φ40      Φ50Φ40      Φ50
O.D Tool   20            20           25         20           25   25
Facing Tool   20            20           25         20           25   25
    MAIN SPECIFICATIONS
ItemParameterItemParameter
ModelCLT63/80/80A/ 100AModelCLT63/80/80A/ 100A
Center heightmm63/80/80/ 100Working Flow rateL/min18/22/25/30
Allowed number of toolsposition8; 12Max unbalance moment of
torque
Nm15/20/25/50
Rotation timesec.0.35/0.35/0.4/0.65

Rotation and camping
sec.0.45/0.45/0.5/0.8Max tangential moment of
torque
Nm1500/2000/2500/3500
Rotation timesec.1.5/ 1.5/ 1.7/ 1.8
Rotation and campingsec.1.6/ 1.6/ 1.8/ 1.95Max axial moment of torqueNm1500/2000/2500/3500
Repeatability Accuracy
±1.6"
Indexing Accuracy
±4"Net weight (without tool disc)Kg35/43/65/ 100
Working pressureMPa3.5
