BWD Series

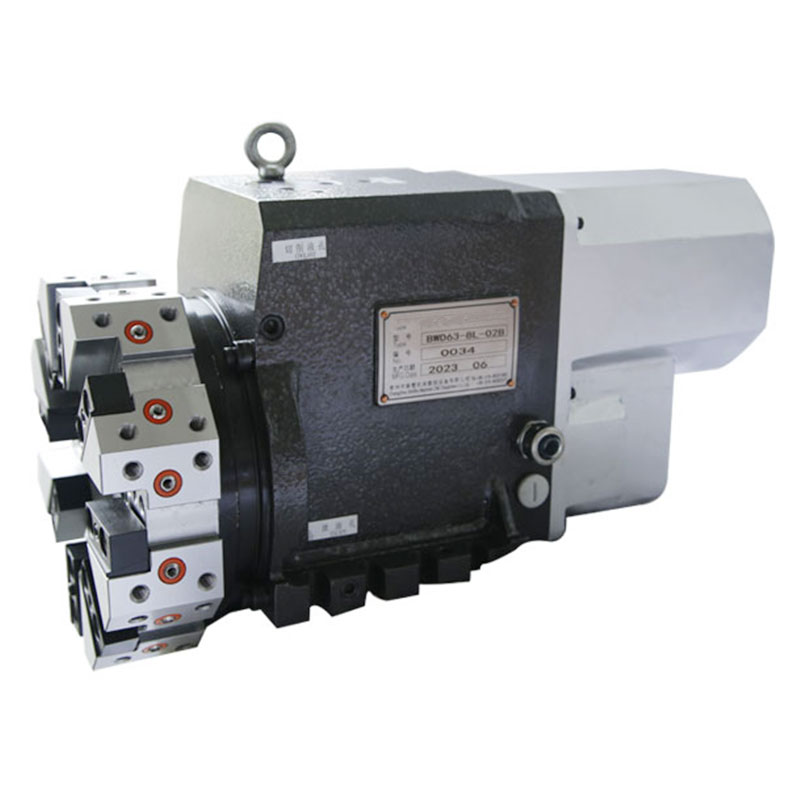

BwSll is our company's new turret catering for the demand of customer. The central height meet international standards

Utilizing cycloid reduction, camlock-type, three gear-teeth location and change tool without lifting the disc.

It owns the compact structure, good appearance


Product Drawings


Product Parameters



ModelDimension
     HABC   DEFGIJK   LMN0PQRSTUVWX
BWD63-8     63208- 1126   1455532320514027220   172020190/175243030134165185G1/4"
BWD80-8     80256- 1126   1496531423816037625   22253227011215323232149190210G3/8"
BWD100-8     100328- 1332   1728035028020545625   223040330/252344030188220250G3/8"
   Main specifications
Item
ParameterItem
Parameter
Center Heightmm63/80/ 100Max bias torqueNm10/ 12/25
Allowed number of toolsposition6;8Accuracy of repeatabilitymm<0.005
Ratation timesec.1.8/ 1.8/2. 1Indexing Accuracy
±7″
Ratation timesec.2.9/2.9/3.2Motor spowerw90/ 140/ 140
Max tangential torqueKNm0.7/ 1.5/3.0Motor speedr/min900/ 1400/ 1400
Max axial torqueKNm0.8/ 1.6/3.5Net weight(without tool disc)Kg35/50/80
