Joint surface according to DIN 1809
Suitable for DOOSAN/DAEWOO/HWACHON
Output shaft collet according to DIN 6499

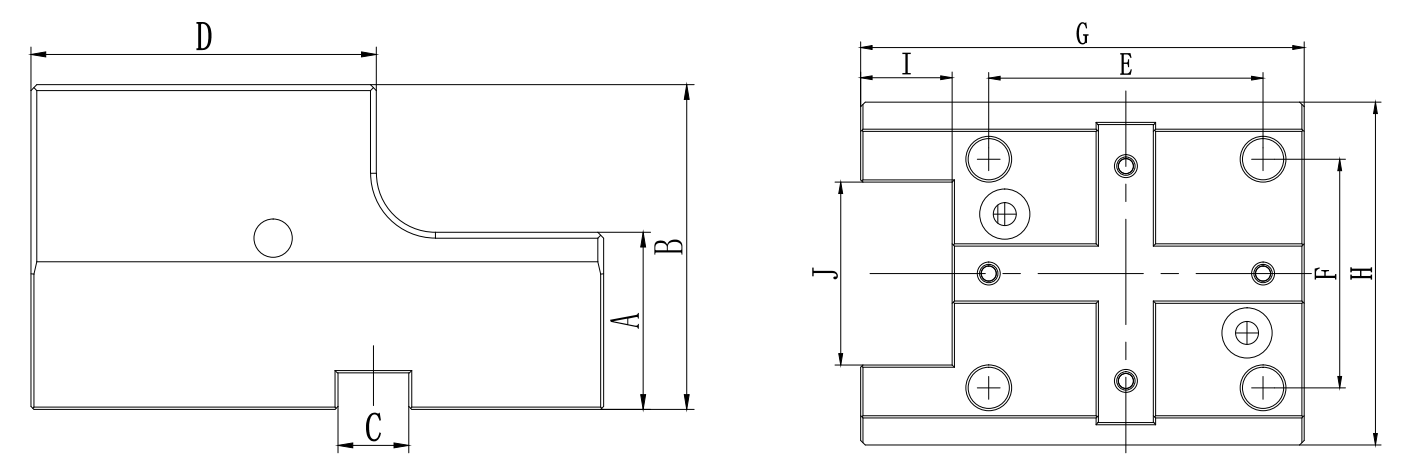

Product Drawings
Product Parameters
| PRODUCT PARAMETER | |||||||||
| Drawing number | A | B | C | D | E | F | G | H | N.W.(KG) |
| F402045 | 20 | 65 | 12 | 40 | 60 | 50 | 81 | 75 | 2.2 |
| F452560 | 25 | 85 | 15 | 50 | 58 | 58 | 86 | 90 | 3.6 |
| F552560 | 25 | 85 | 15 | 50 | 64 | 64 | 95 | 95 | 4.5 |
| F652575 | 25 | 100 | 18 | 50 | 70 | 73 | 110 | 98 | 5.4 |
