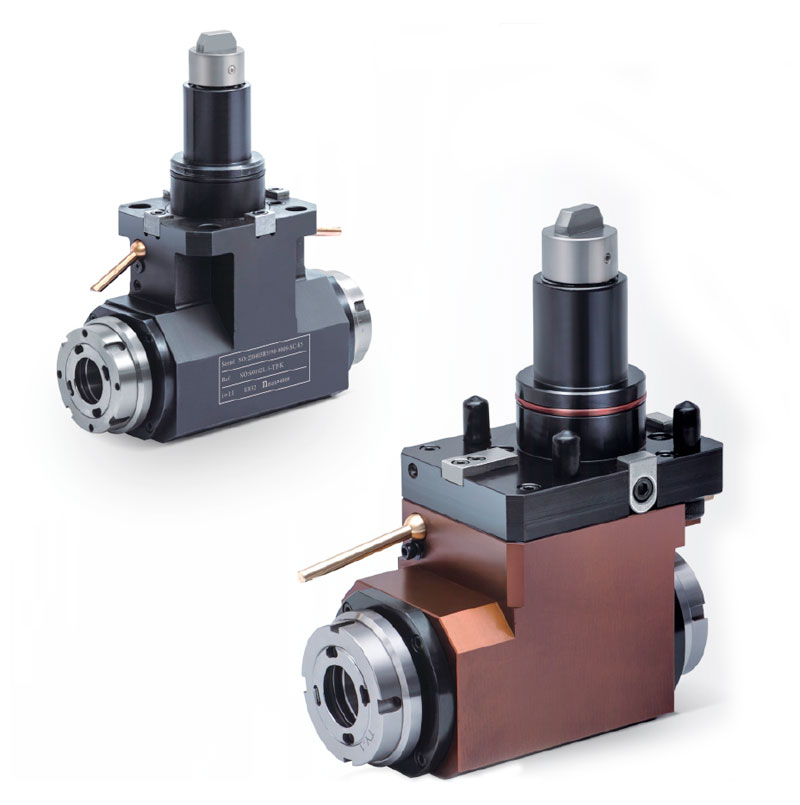

BMT series O degree driven tool holder

90 degree double outlet powered tool holder:

Size:BMT45/BMT55/BMT65

Centerline Height:85

Collet locking method:External lock/Internal lock

Collet size:BMT45:ER20、BMT55:ER25/ER32、BMT65:ER32


90 degree double retractable power tool holder:

Tool holder size:BMT55

Center high:85/110

Chuck locking method:External lock/inner lock

Chuck size:ER32


Product Drawings



Product Parameters



90 degree double outlet powered tool holder
Technical parameters
ModelABCDEFGH
JK
MN.W.(KG
BMT45-90-85-SC-N-ER2085113.5ER20(1-13)45ER20(1-13)25.687.125.687.1585883 756
BMT55-90-85-SC-N-ER2585118.5ER25(1-16) 55ER25(1-16)25.690.325.690.3646497 858.5
BMT55-90-85-SC-ER3285118.5ER32(2-20)55ER32(2-20)37.6102.337.6102.3737097 949
BMT65-90-100-SC-ER328533.5ER32(2-20)65ER32(2-20)37.62.337.6102.37370104 9410.4


90 degree double retractable power tool holder
Technical parameters
ModelABCDEFGH

 K
NW. (KG
BMT55-90-85-SCHS-FR3285121.5  ER32(2-20)55  42
126
42

29
  46  64  64851159.5
BMT55-90-85-SCHS-N-ER32N-ER32(2-20)  29
BMT55-90-110-SCHS-ER32110146.5  ER32(2-20)  424211.5
BMT55-90-110-SCHS-N-ER32N-ER32(2-20)  2929
