Joint surface according to DIN 1809
Suitable for DOOSAN/DAEWOO/HWACHON
Output shaft collet according to DIN 6499

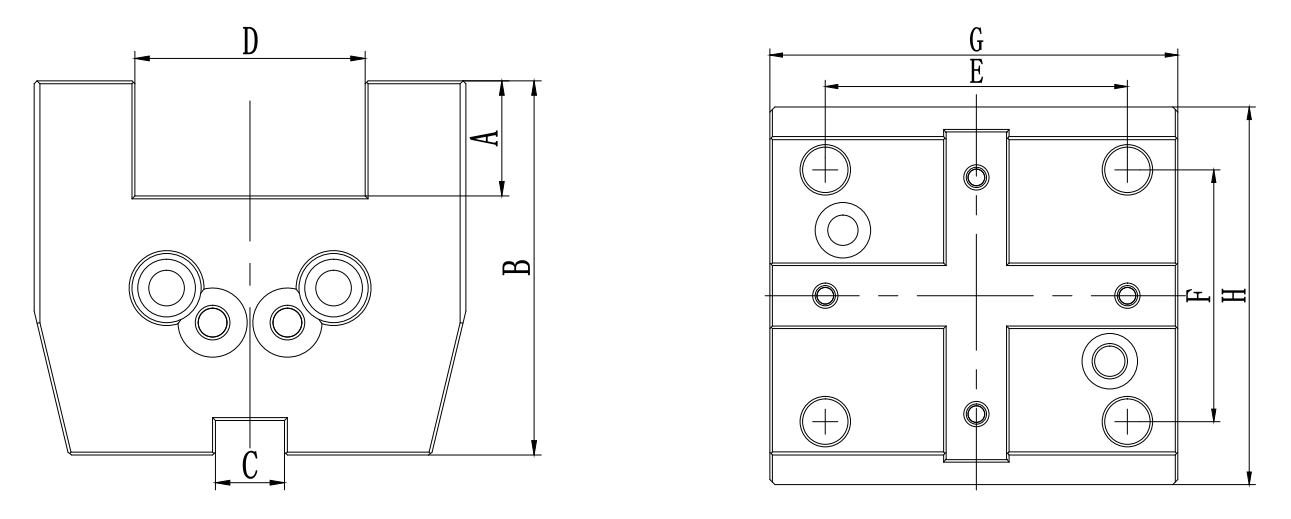

Product Drawings
Product Parameters
| PRODUCT PARAMETER | |||||||||
| Drawing number | A | B | C | D | E | F | G | H | N.W.(KG) |
| SC402055 | 55 | 12 | 40 | 20 | 60 | 50 | 116 | 75 | 4.6 |
| SC452580 | 80 | 15 | 50 | 25 | 58 | 58 | 141 | 85 | 5.5 |
| SC552580 | 80 | 15 | 50 | 25 | 64 | 64 | 151 | 88 | 6 |
| SC652580 | 80 | 18 | 50 | 25 | 70 | 73 | 161 | 98 | 7.2 |
