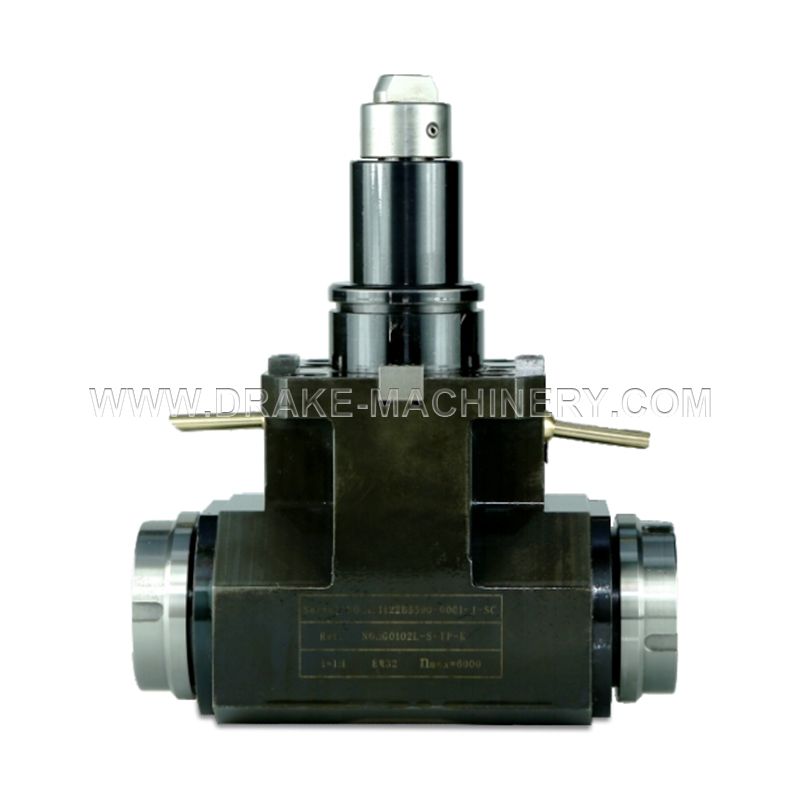

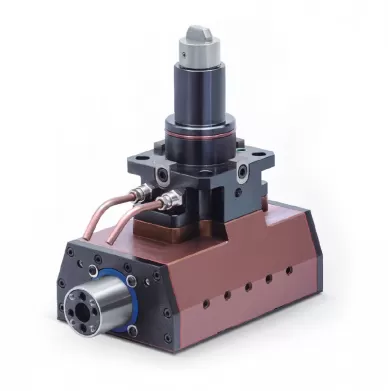

Joint surface according to DIN 1809
Suitable for DOOSAN/DAEWOO/HWACHON
Output shaft collet according to DIN 6499

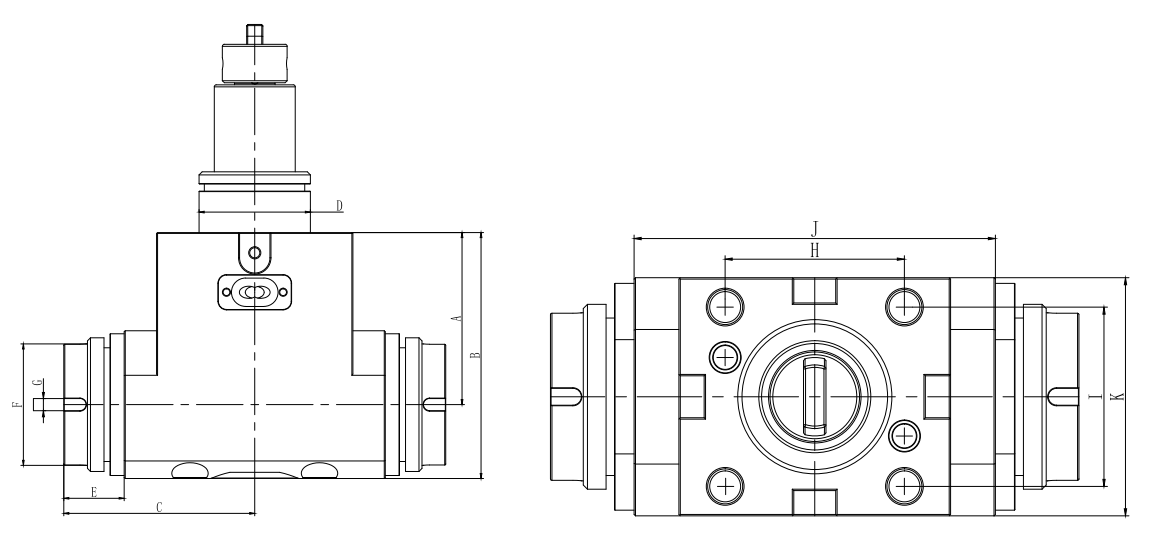

Product Drawings
Product Parameters
| PRODUCT PARAMETER | ||||||||||
| Drawing number | A | B | C | D | E | F | G | H | I | N.W.(KG) |
| SB402040 | 40 | 75 | 95 | 20 | 60 | 50 | 94 | 63 | 12 | 3.5 |
| SB452060 | 60 | 110 | 130 | 20 | 58 | 58 | 95 | 75 | 15 | 5.4 |
| SB552060 | 60 | 125 | 145 | 20 | 64 | 64 | 105 | 86 | 15 | 6.4 |
| SB652060 | 60 | 125 | 145 | 20 | 70 | 73 | 120 | 98 | 18 | 8.6 |
