Joint surface according to DIN 1809
Suitable for DOOSAN/DAEWOO/HWACHON
Output shaft collet according to DIN 6499

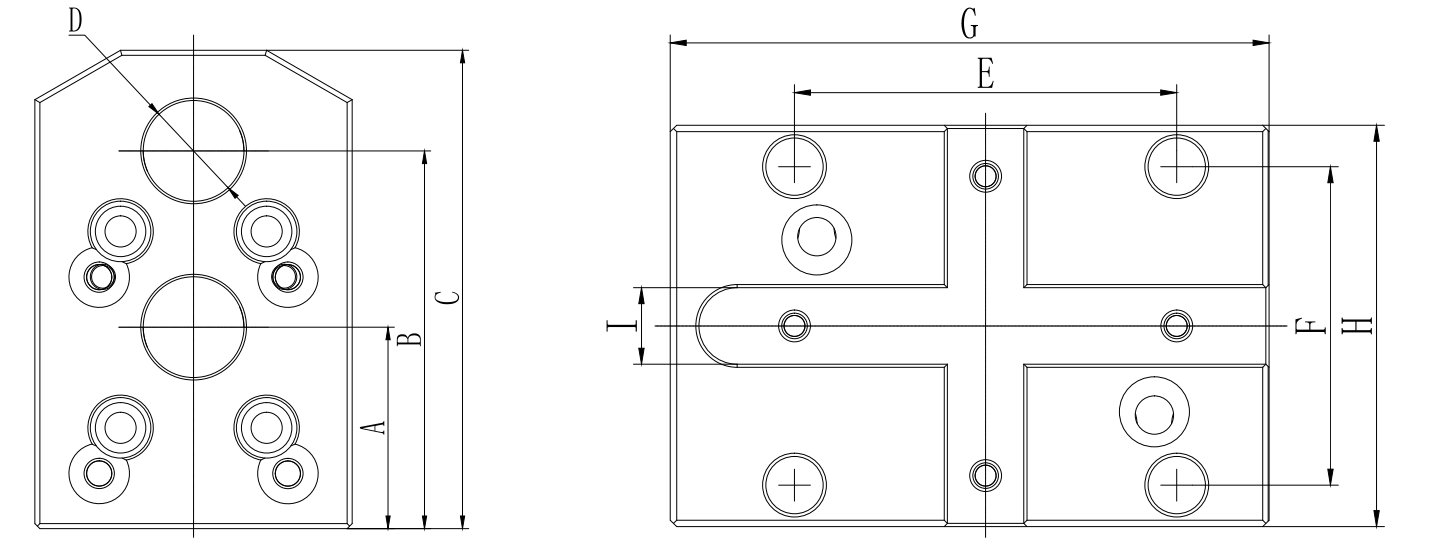

Product Drawings
Product Parameters
| PRODUCT PARAMETER | |||||||||
| Drawing number | A | B | C | D | E | F | G | H | N.W.(KG) |
| B402560 | 60 | 83 | 12 | 25 | 60 | 50 | 94 | 63 | 2.7 |
| B453265 | 65 | 88 | 15 | 32 | 58 | 58 | 95 | 75 | 3.2 |
| B554060 | 60 | 97 | 15 | 40 | 64 | 64 | 105 | 86 | 3.6 |
| B5540100 | 100 | 130 | 18 | 40 | 70 | 73 | 120 | 98 | 6.5 |

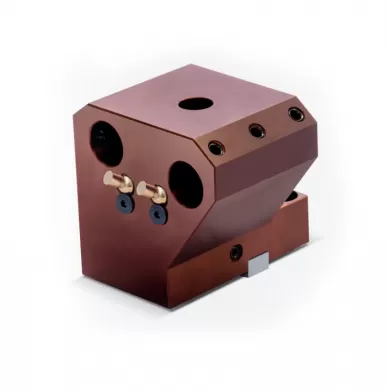

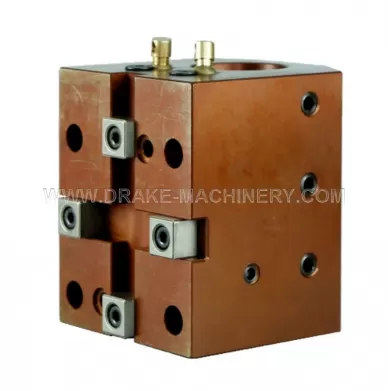

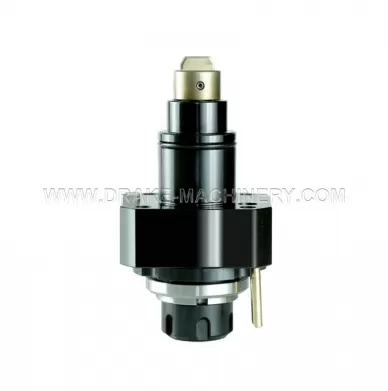

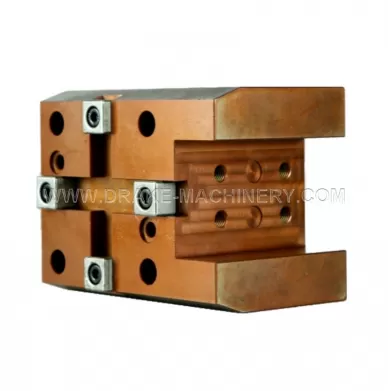

Related Products
