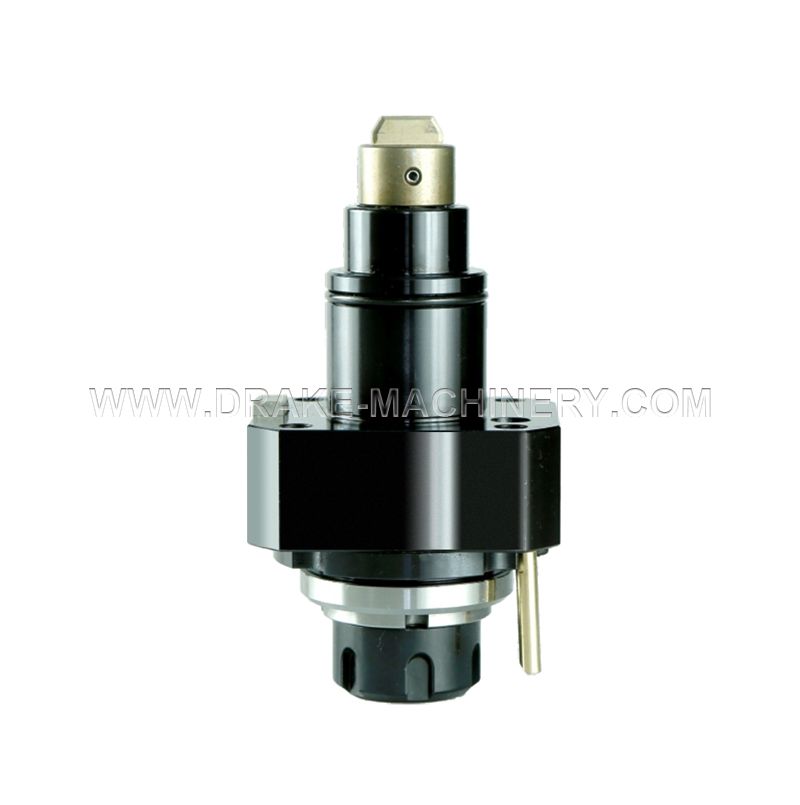

BMT series 0 degree driven tool holder

BMT series 0 degree driven tool holder

Joint surface according to DIN 1809

Suitable for DOOSAN/DAEWOO/HWACHON

Output shaft collet according to DIN 6499

Next Product Inquire Now

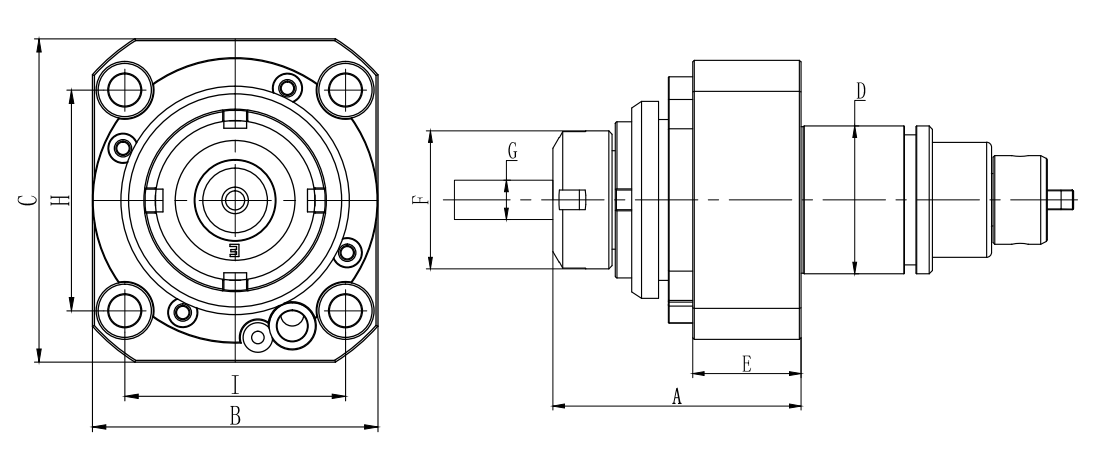

Product Drawings


Product Parameters

Model/Data	Center height (mm)	Motor power(W)	Max.tangential torque(N·m)	Repeatability accuracy(")	Time of changing tool and lock(s)
Model/Data	Center height (mm)	Motor power(W)	Max.tangential torque(N·m)	Repeatability accuracy(")	90º	180º	270º
LD4CK0610	40	40	100	±2	1	1.4	1.8
LD4CK0620	48	50	150	±2	1.2	1.6	2
LD4CK0625	51	90	300	±2	1.7	2.2	2.7
LD4CK6125	57	90	400	±2	1.9	2.4	2.9
LD4CK6132	70	120	500	±2	2	2.5	3
LD4CK6136	77	120	500	±2	2	2.5	3
LD4CK6140	81	120	600	±2	2	2.5	3
LD4CK6150	121	120	600	±2	2	2.5	3
LD4CK6163	120	180	800	±2	2.5	3.2	3.9

Model/Dim	H1	H2	H3	H4	L1	L2	L3	L4	A	A1	B	B1
LD4CK0610	86	40	15	11	57.5	86	70	50	70	35	87	36
LD4CK0620	116	48	19	16	58	100	80	56	80	40	110	55
LD4CK0625	128	51	22	16	86	118	110	80	120	55	126	56
LD4CK6125	162	57	35	16.5	110	118	136	96	136	68	148	68
LD4CK6132	187	70	40	21	76	127	152	104	161	76	171	76
LD4CK6136	194	77	33	21	76	127	152	104	161	76	171	76
LD4CK6140	202	81	40	23	76	127	162	112	192	81	192	105
LD4CK6150	242	121	40	47	76	127	162	112	192	81	192	105
LD4CK6163	253	120	51	40	110	132	200	124	200	100	200	100

Dim Model	C	D	D1	E	E1	F	φ	φ1	φ2	h	M
LD4CK0610	74	57	50	6.5	10	6.5	φ7	φ11	φ68	6.5	M6
LD4CK0620	94	64	52	8	13	8	φ9	φ14	φ78	9	M8
LD4CK0625	110	90	80	15	20	8	φ9	φ14	φ88	9	M10
LD4CK6125	126	108	108	14	14	11	φ11	φ17	φ88	11	M12
LD4CK6132	146	126	126	23	23	12	φ13	φ19	φ88	13	M16
LD4CK6136	146	126	126	23	23	12	φ13	φ19	φ88	13	M16
LD4CK6140	168	152	152	20	20	12	φ13	φ19	φ88	13	M16
LD4CK6150	168	152	152	20	20	12	φ13	φ19	φ88	13	M16
LD4CK6163	177	150	130	25	35	11.5	φ13	φ19	φ98	13	M16
