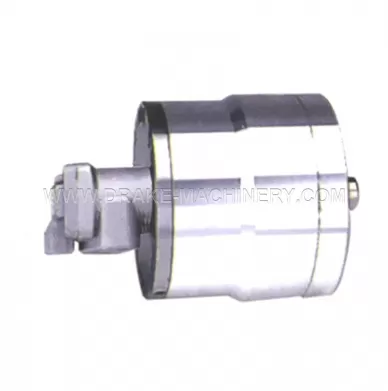

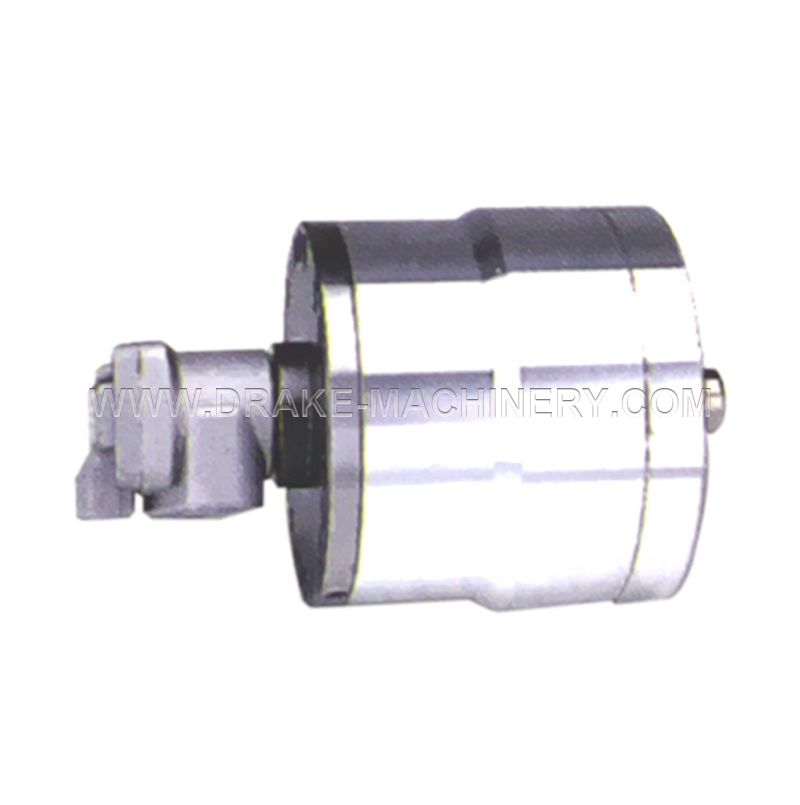

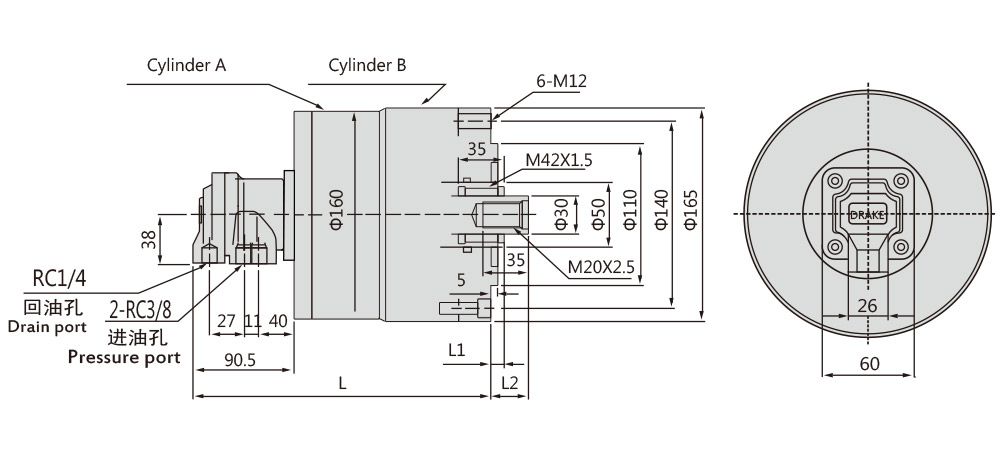

Product Drawings
Product Parameters
The cylinder body is made of high quality aluminum alloy, lightweight, small, double rod rotary cylinder.
Please review the following parameter table. We offer various types of rotating hydraulic cylinders. If you need any assistance, feel free to leave your email and questions, and we will arrange for a professional to connect with you!
| Dimensions(mm) | |||||||
| Spec | A | B | L | L1 max. | L1 min | L2 max. | L2 min |
| Model | |||||||
| RD-120N | 125 | 130 | 215 | 35 | 15 | 60 | 40 |
| RD-125N | 225 | 10 | 55 | 30 | |||
| Specifications | |||||||||
| Spec | Eff piston area(cm²) | Piston stroke(mm) | Max. Speed (r/min) | Max. pressure MPa(kgf/cm²) | Moment of inertial (kg.m²) | Weight(kg) | |||
| Model | Extend | Retract | |||||||
| A | B | A | B | ||||||
| RD-120N | 122.7 | 126 | 116 | 113 | 20 | 5000 | 30(3.0) | 0.14 | 11.2 |
| RD-125N | 25 | 0.15 | 11.4 | ||||||
