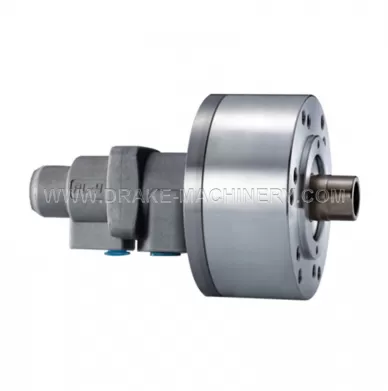

Elevate your industrial operations with the RD-N Double Rod Rotating Cylinder. Experience the advantages of its dual rod design, versatile functionality, space-saving design, and reliability. Enhance efficiency, achieve precise rotational movement, and expand your industrial capabilities with this high-performance rotating cylinder.

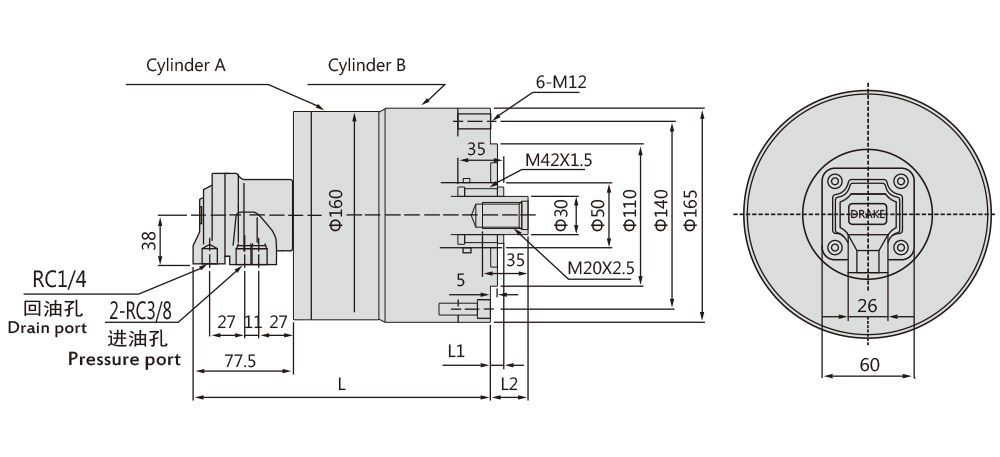

Product Drawings
Product Parameters
The cylinder body is made of high quality aluminum alloy, small through-hole, lightweight, small and durable.
Please review the following parameter table. We offer various types of rotating hydraulic cylinders. If you need any assistance, feel free to leave your email and questions, and we will arrange for a professional to connect with you!
| Dimensions(mm) | |||||||||||
| Spec | A | B | D | E(H7) | F1 | G1 | G2 | H | M1 | ||
| Model | max | min | max | min | |||||||
| KH-90 | 90 | 112 | 100 | 60 | 22 | 6 | 0 | 24 | 18 | 42 | 6-M6x50 |
| Specifications | |||||||||
| Spec | Eff piston area(cm²) | Piston stroke(mm) | Max. Speed (r/min) | Max. pressure MPa(kgf/cm²) | Max.pull force kgf(KN) | Moment of inertial (kg.m²) | Weight(kg) | ||
| Model | Extend | Retract | Extend | Retract | |||||
| KH-90 | 59.8 | 59.8 | 6 | 3000 | 25(2.5) | 1315(13.42) | 1315(13.42) | 0.01 | 2.3 |
| The drain port should be independently connected to oil tank to avoid back pressure. | |||||||||
