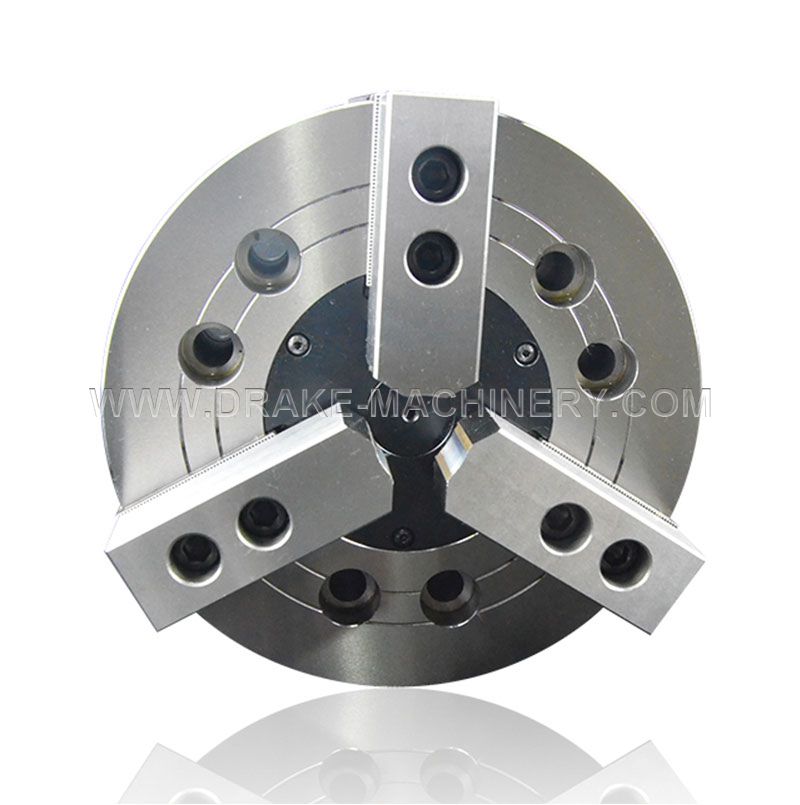

Elevate your machining precision and efficiency with the YS3 3-Jaw Solid Hydraulic Chuck. Benefit from superior clamping force, increased accuracy, and versatile workpiece compatibility. With its user-friendly operation and durable construction, this hydraulic chuck is a valuable asset for any machining workshop, delivering consistent and high-quality results.
Adopt the advanced alloy steel material, all with the surface by surface hardening treatment, in order to improve the accuracy and durability.
With flange connection, A connection.

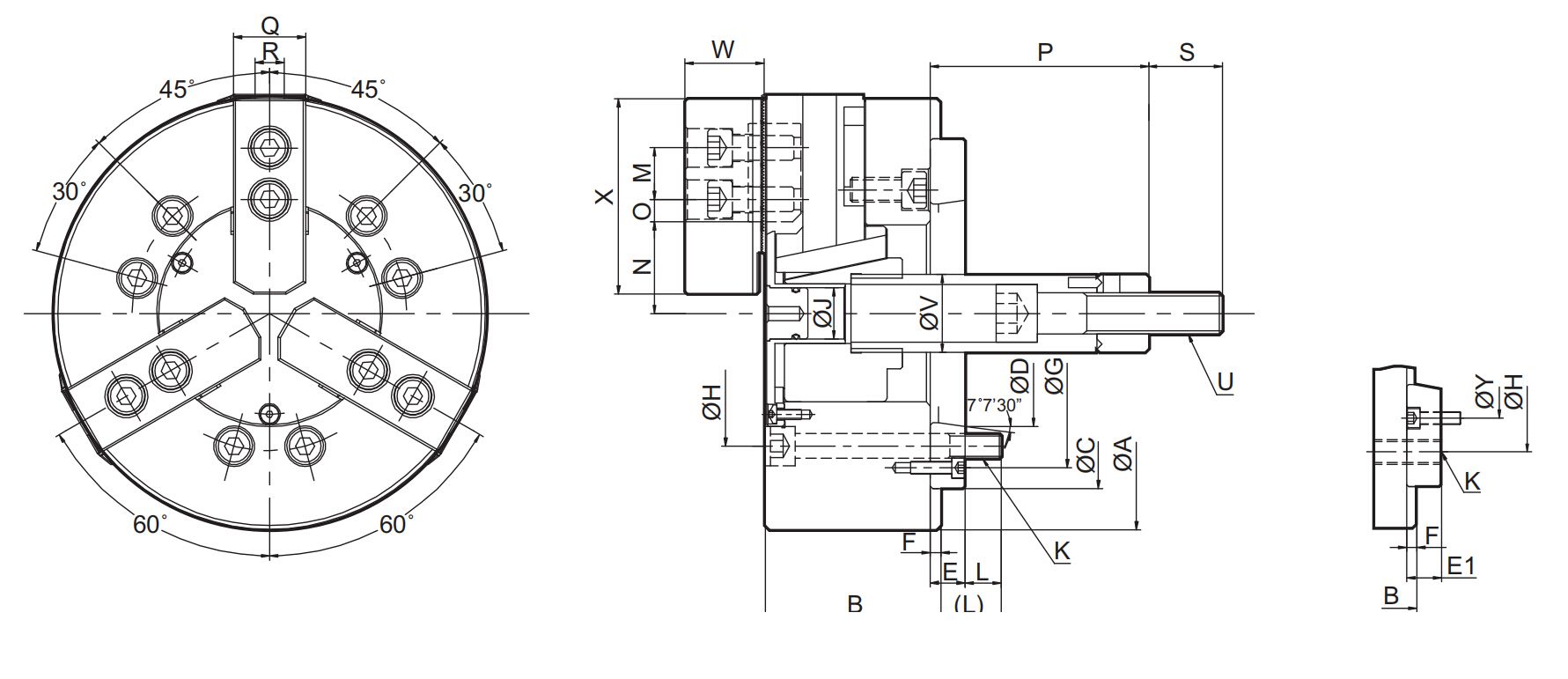

Product Drawings
Product Parameters
Discover the cnc power chuck model that suits your requirements from the following parameters. As a leading cnc power chuck manufacturer, if you have any questions regarding selection, pricing, or technical aspects, please don't hesitate to reach out. Feel free to leave your email along with your inquiries, and our dedicated team will promptly get in touch with you for professional assistance!
| Performance parameters | ||||||||||
| MODEL/SPEC. | Nose Of Spindle | Plunger Stroke (mm) | Jaw Stroke (Diameter)(mm) | Max.Speed (r.p.m) | Max.Pull Force (kgf) | Max.Gripping Force (kgf) | Max.Hydr.Pressure (kgf/cm²) | Net weight (kg) | Matching Cylinder | Gripping Range |
| YS2-04 | - | 15 | 6.9 | 6000 | 540 | 1500 | 19 | 4.1 | SH65 | Φ5~Φ110 |
| YS2-05 | A24 | 15 | 6.4 | 5500 | 800 | 2450 | 22 | 5.4 | SH80 | Φ8~Φ135 |
| YS2-06 | A25 | 20 | 8.5 | 5000 | 1220 | 3460 | 17.3 | 11.1 | SH100 | Φ18~Φ165 |
| YS2-08 | A26(A25) | 21 | 8.8 | 4000 | 1630 | 4990 | 16.3 | 21.3 | SH125 | Φ26~Φ210 |
| YS2-10 | A28(A26) | 25 | 8.8 | 3500 | 1930 | 7140 | 19 | 32.6 | SH150 | Φ26~Φ254 |
| YS2-12 | A28 | 30 | 10.5 | 3000 | 2750 | 10300 | 18.4 | 57 | SH200 | Φ26~Φ304 |
| Size parameter | |||||||||||||||||||||||||||
MODEL /SPEC. | A | B | C (h6) | D | E | E1 | F | G | H | J | K | L | M | N max. | N min. | O max. | O min. | P max. | P min. | Q | R | S | U | V | W | X | Y |
| YS2-04 | 110 | 52 | 60 | - | - | - | 6 | - | 80 | - | - | 12 | 14 | - | - | 11.3 | 8.3 | 18 | 3 | 25 | 10 | 25 | M10X1.5P | 26 | 25 | 52 | - |
| YS2-05 | 135 | 55 | 80 | 63.513 | - | - | 7 | - | 100 | - | 3-M10X1.5P | 14 | 14 | 30.4 | 27.2 | 17 | 7 | 9 | -6 | 25 | 10 | 35 | M12X1.75P | 28 | 31 | 62 | - |
| YS2-06 | 165 | 74 | 140 | 82.563 | 15 | - | 5 | 116 | 104.8 | 21 | 6-M10X1.5P | 14 | 20 | 37.8 | 33.25 | 18 | 7.5 | 107.5 | 87.5 | 31 | 12 | 36 | M16X2P | 34 | 36 | 73 | - |
| YS2-08 | 210 | 85 | 170 | 106.375 | 17 | 25 | 5 | 150 | 133.4 | 25 | 6-M12X1.75P | 20 | 25 | 46.3 | 41.9 | 22.5 | 9 | 127 | 106 | 35 | 14 | 36 | M20X2.5P | 38 | 42 | 95 | 104.8 |
| YS2-10 | 254 | 89 | 220 | 139.719 | 18 | 28 | 5 | 190 | 171.4 | 34 | 6-M16X2P | 20 | 30 | 51.4 | 47 | 37.5 | 10.5 | 158 | 133 | 40 | 16 | 36 | M20X2.5P | 45 | 44 | 110 | 133.4 |
| YS2-12 | 304 | 106 | 220 | 139.719 | 18 | - | 5 | 190 | 171.4 | 34 | 6-M16X2P | 20 | 30 | 60.7 | 55.45 | 47 | 11 | 163 | 133 | 50 | 18 | 36 | M20X2.5P | 50 | 54 | 130 | - |
