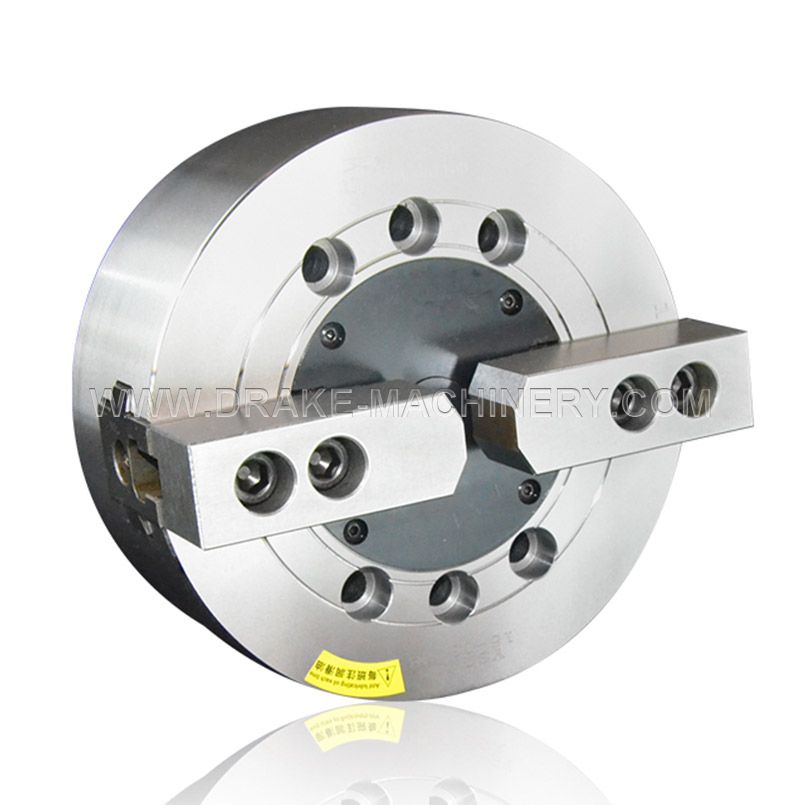

Product Feature:
Adopt the advanced alloy steel material, all with the surface by surface hardening treatment, in order to improve the accuracy and durability.
With flange connection, A connection.
The working principle of the new hydraulic chuck
Drake is a leading enterprise with 15+ years of factory experience, specializing in machine tool accessories and offering OEM & ODM services. We cooperate with over 60 countries and provide one-stop purchasing solutions for for Power Chuck, Collet Chuck, Turret, Tool Holder, Rotary Cylinder, Laser Chuck, Tool magazine, and more. Our strict adherence to international quality standards and comprehensive product range ensures tailored processing solutions for diverse customer needs.

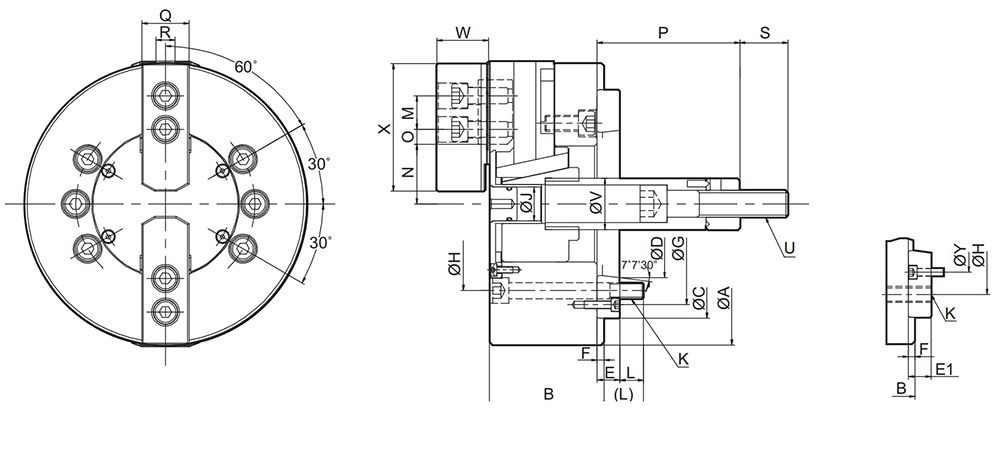

Product Drawings
Product Parameters
MAIN SPECIFICATIONS
| ltem | unit | Model | |||
| R63A | R80A | R100A | R125A | ||
| Center height | mm | 63 | 80 | 100 | 125 |
| workstation | 8；12 | 8；12 | 12 | 12 | |
| power tool speed | rpm | 6000 | 5000 | 4000 | 3500 |
| rotating time（including locking) | sec. | 0.23 | 0.35 | 0.42 | 0.84 |
| total indexing time for 180（including locking） | sec. | 0.55 | 0.76 | 0.83 | 1.56 |
| clamping force | kg | 1700 | 2600 | 3500 | 5200 |
| hydraulic working pressure | mpa | 3.5±0.5 | |||
| flow rate | L/min | 18 | 20 | 25 | 30 |
| inertia of transportable masses | kg.m² | 0.5 | 1.5 | 4 | 7 |
| unbalancing torque | N.m | 10 | 15 | 40 | 60 |
| indexing accuracy | ±4" | ||||
| accuracy of repeatability | ±1.6" | ||||
| toolholder size | mm | ∅40; ∅45 | ∅45; ∅55 | ∅55; ∅65 | ∅65 |
| toolholder type | BMT | ||||
| toolshank coupling | DIN1809 | ||||
| Max power（S3-40%-10min） | kw | 2.2 | 3.7 | 5.5 | 7.5 |
| Motor （FANUC)(No available） | α1.5/10000i | α2/10000i | α3/10000i | α6/10000i | |
| Motor and tool transmission ratio | 1；1 | 1；1 | 1；1 | 1；1 | |
| Weight(Not including motor) | kg | 103 | 120 | 185 | 245 |
