Product Feature:

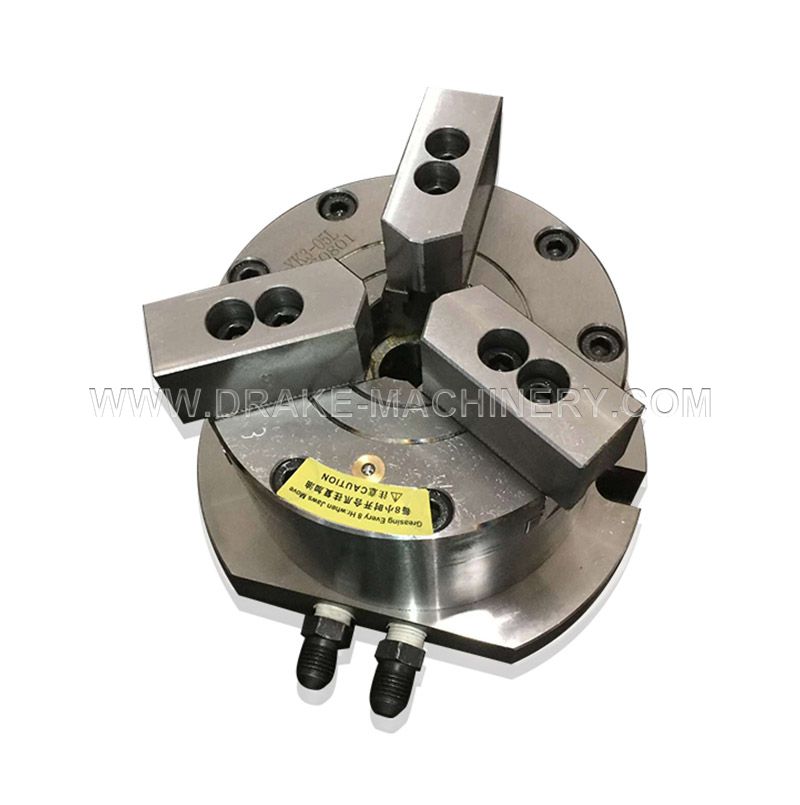

Patent-product, vertical type with baseboard.
Built-in cylinder structure, convenient for installation.
This chuck is applicable for machining center, driller and miller.
Two-claw and four-claw are available.

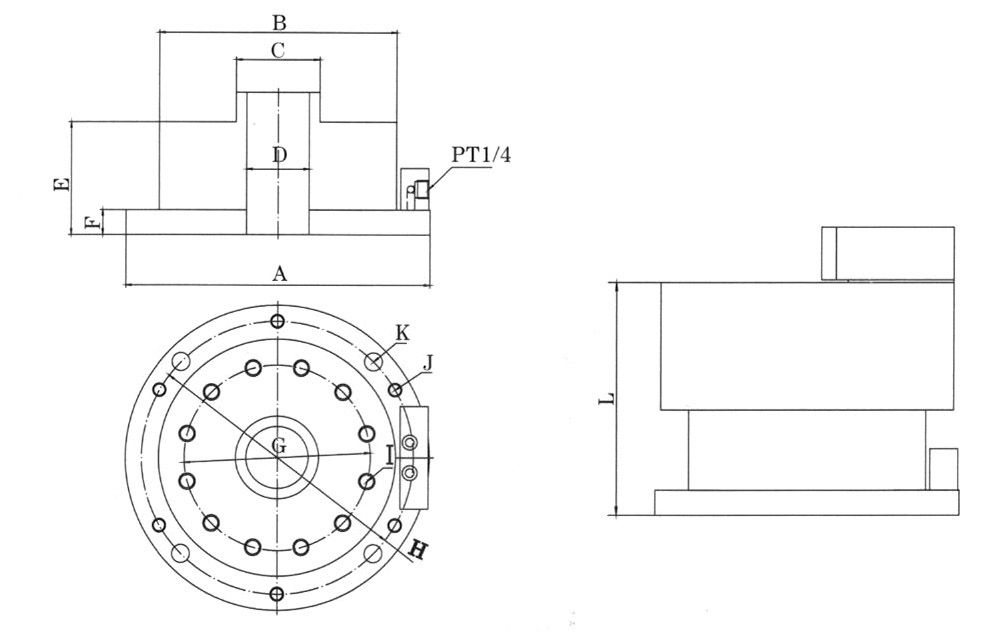

Product Drawings
Product Parameters
Discover the cnc power chuck model that suits your requirements from the following parameters. As a leading cnc power chuck manufacturer, if you have any questions regarding selection, pricing, or technical aspects, please don't hesitate to reach out. Feel free to leave your email along with your inquiries, and our dedicated team will promptly get in touch with you for professional assistance!
| Model/Spec | A（mm） | B（mm） | C（mm） | D（mm） | E（mm） | F（mm） | G（mm） | H（mm） | I（mm） | J（mm） | K（mm） | L（mm） |
| 4 inches | 125 | 85 | M32*1.5 | 21 | 70 | 15 | 70.6 | 105 | M10 | - | 9 | 125 |
| 5 inches | 155 | 110 | M40*1.5 | 29 | 68 | 15 | 82.56 | 135 | M10 | - | 11 | 124 |
| 6 inches | 188 | 140 | M55*2 | 45 | 72 | 15 | 104.8 | 165 | M10 | M10 | 11 | 148 |
| 8 inches | 218 | 170 | M60*2 | 45 | 81 | 81 | 133.4 | 195 | M12 | M12 | 12 | 167 |
| 10 inches | 276 | 220 | M85*2 | 70 | 107 | 20 | 171.4 | 250 | M16 | M16 | 17 | 202 |
