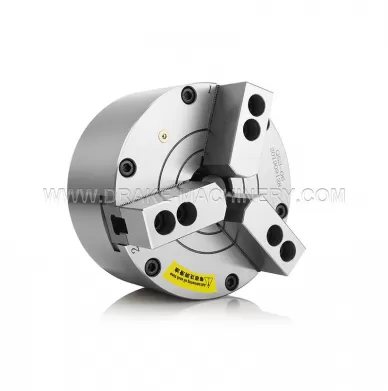

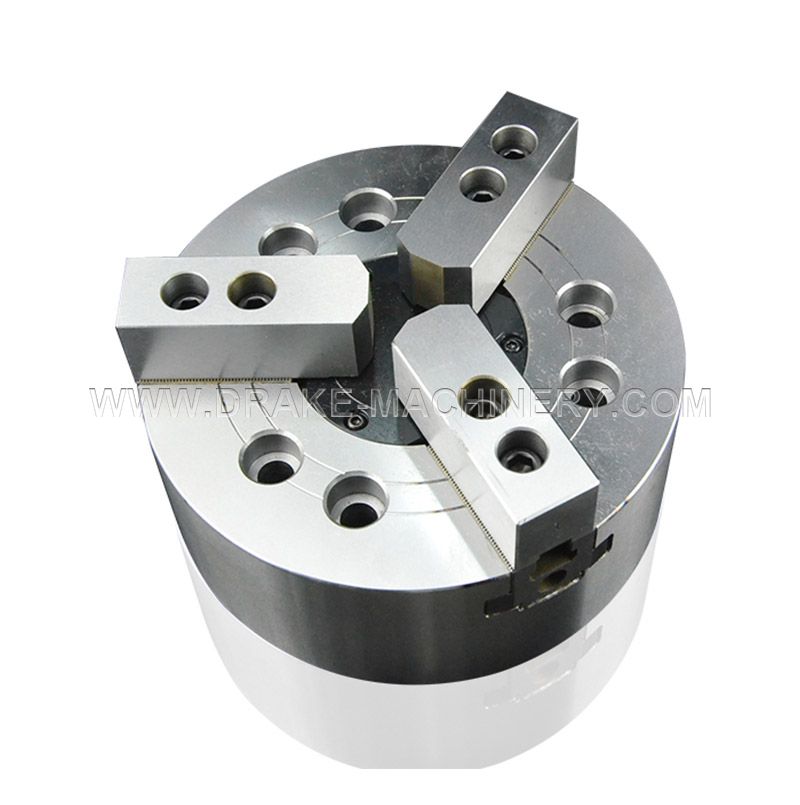

YK3-3 Jaw Through Hole Hydraulic Power Chuck

Product Feature:

1.Adopt the advanced alloy steel material, all with the surface by surface hardening treatment, in order to improve the accuracy and durability.

2.With flange connection, A connection.

A pneumatic chuck is a highly efficient tool commonly used in machining for securing workpieces, and the pneumatic 3 jaw chuck is particularly popular for its versatility. The 3 jaw pneumatic chuck or pneumatic power chuck is designed to provide consistent clamping force through air pressure, making it ideal for automated processes. For applications requiring robust and reliable clamping, a 3 jaw air chuck is often used. These pneumatic power chucks are frequently found in pneumatic lathe chuck setups, where the pneumatic chuck 3 jaw configuration ensures precision and stability during high-speed operations.

Drake is a leading enterprise with 15+ years of factory experience, specializing in machine tool accessories and offering OEM & ODM services. We cooperate with over 60 countries and provide one-stop purchasing solutions for for Power Chuck, Collet Chuck, Turret, Tool Holder, Rotary Cylinder, Laser Chuck, Tool magazine, and more. Our strict adherence to international quality standards and comprehensive product range ensures tailored processing solutions for diverse customer needs.

Next Product Inquire Now

Product Parameters

Discover the cnc power chuck model that suits your requirements from the following parameters. As a leading cnc power chuck manufacturer, if you have any questions regarding selection, pricing, or technical aspects, please don't hesitate to reach out. Feel free to leave your email along with your inquiries, and our dedicated team will promptly get in touch with you for professional assistance!

Performance parameters
Model/Spec	Nose Of Spindle	Thru-Hole (Diametet) (mm)	Plunger Stroke（mm）	Jaw Stroke (Diameter) (mm)	Max.Speed (r.p.m)	Max.Pull Force(kgf)	Gripping Force(kgf)	Max.Hydr.Pressure (kgf/cm²）	Net weight (Kg)	Matching Cylinder	Gripping Range
YK3-05	A4	33	10	5.4	7000	1730	3570	29	6.1	TK536	Φ10~Φ135
YK3-06	A5	45	12	5.5	6000	2140	5710	28	12.5	TK646	Φ15~Φ169
YK3-08	A6(A5)	52	16	704	5000	2549	8769	27	23.6	TK852	Φ20~Φ210
YK3-10	A8(A6)	75	19	8.8	4200	4280	11010	27	33.7	TK1075	Φ25~Φ254
YK3-12	A8	91	23	10.6	3300	5500	14380	27	55.3	TH1291	Φ30~Φ304
YK3-15	A11(A8)	117.5	23	10.6	2500	7240	18250	25	106.8	TH1512	Φ49~Φ381
YK3-18	A11(A8)	117.5	23	10.6	2000	7240	18250	25	171	TH1512	Φ79~Φ450
YK3-21	A15(A11)	180	23	10.6	1800	9170	23860	24	234	TH1512	Φ105~Φ530
YK3-24	A15(A11)	205	26	12	1400	10000	24500	21	284	TH1512	Φ135~Φ610
YK3-32	A15	205	34	18	800	10000	24500	21	560	TH1512	Φ205~Φ800

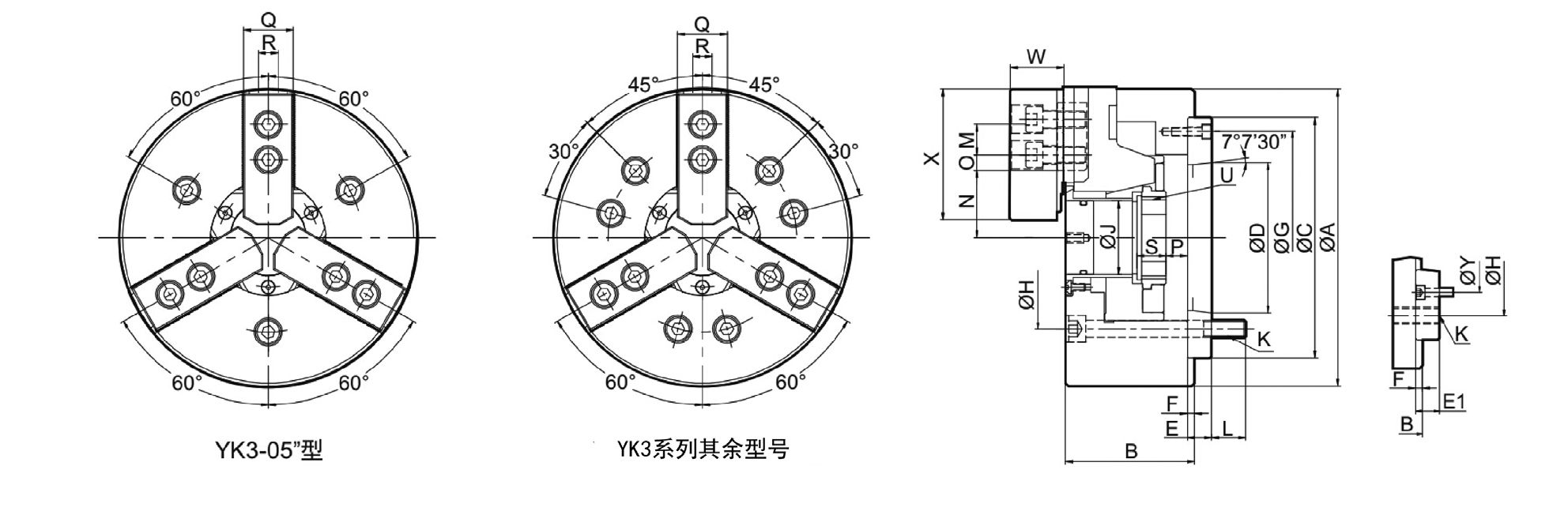

Size parameter
MODEL /SPEC.	A	B	C (h6)	D	E	E1	F	G	H	J	K	L	M	N max.	N min.	O max.	O min.	P max.	P min.	Q	R	S	U	W	X	Y	Y
YK3-05	135	60	110	63.513	20	-	4	96	82.6	32.5	3-M8X1.25P	15	14	-	-	19	6	1	-9	25	10	20	M40X1.5P	31.5	62	-	-
YK3-06	169	81	140	82.563	15	-	5	116	104.8	45	6-M10X1.5P	16	20	32.35	59.6	24	7	11	-1	31	12	19	M55X2P	37	73		-
YK3-08	210	91	170	106.375	17	25	5	150	133.4	52	6-M12X1.75P	18	25	38.7	35	29.75	14.75	14.5	-1.5	35	14	20.5	M60X2P	39	95	104.8	104.8
YK3-10	254	100	220	139.719	18	28	5	190	171.4	75	6-M16X2P	19	30	51.5	47.1	34	12	8.5	-10.5	40	16	25	M85X2P	48	110	133.4	133.4
YK3-12	304	110	220	139.719	18	-	6	190	171.4	91	6-M16X2P	25	30	61.6	56.3	46	12	8	-15	50	21	28	M100X2P	51	129		-
YK3-15	381	133	300	193.869	22	33	6	255	235	117.45	6-M20X2.5P	27	43	82.3	77	46	13	7	-16	62	22	42.5	M130X2P	66	165	171.4	171.4
YK3-18	450	133	300	193.869	22	33	6	260	235	117.5	6-M20X2.5P	28	43	82.7	76.7	79.25	13.75	7	-16	62	24	42.5	M130X2P	66	165	171.4	171.4
YK3-21	530	134	380	285.78	32	22	6	330	330	180	6-M24	35	60	112.5	107.2	60.5	24.5	11	-12	65	25	38	M190X3P	73	180	-	-
YK3-24	610	147	520	285.78	32	22	6	330	463	205	6-M24	35	60	131.9	125.9	87.5	24.5	16	-10	65	25	38	M215X3P	73	180	-	-
YK3-32	800	150	520	285.78	32	22	6	330	463	205	6-M24	35	60	162	153	153.5	24.5	16	-10	65	25	38	M250X3P	73	180	-	-
