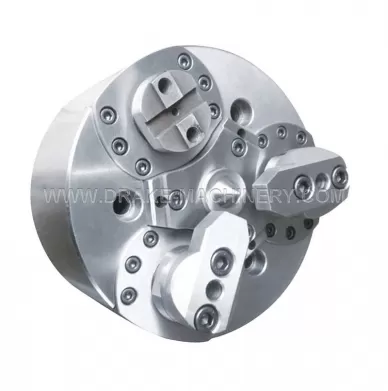

YFD Full Automatic Index Power Chuck

Note

● Only in the maximum pressure, the highest speed can be achieved when using the jaw of no more than the weight shown in the table above.

● The processed workpieces and two jaws must be well balanced rotating the axis. If do not meet this condition, or jaw is overweight, the speed must be reduced.

● The workpiece can index when the shaft is rotating. When the workpiece at high speed, to avoid vibration as a result of workpiece’ weight unbalance in the middle position, the speed is proposed to reduce 30-50%.

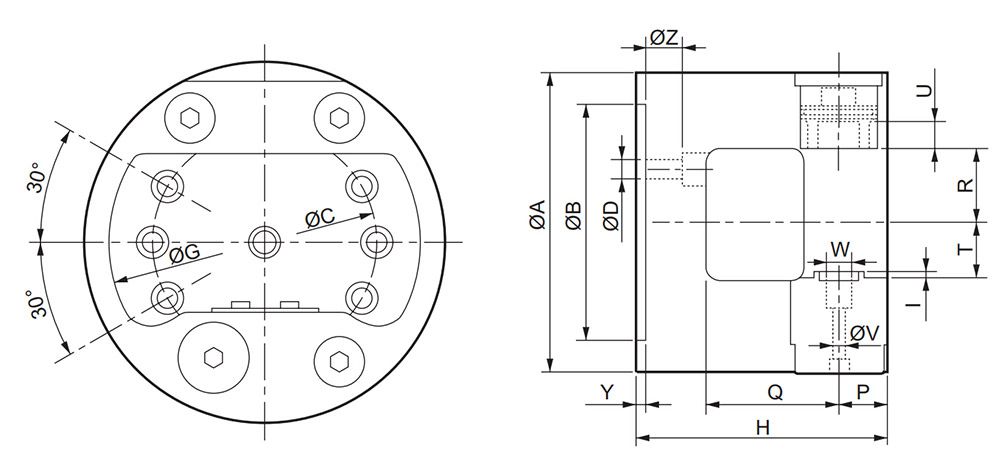

Product Drawings

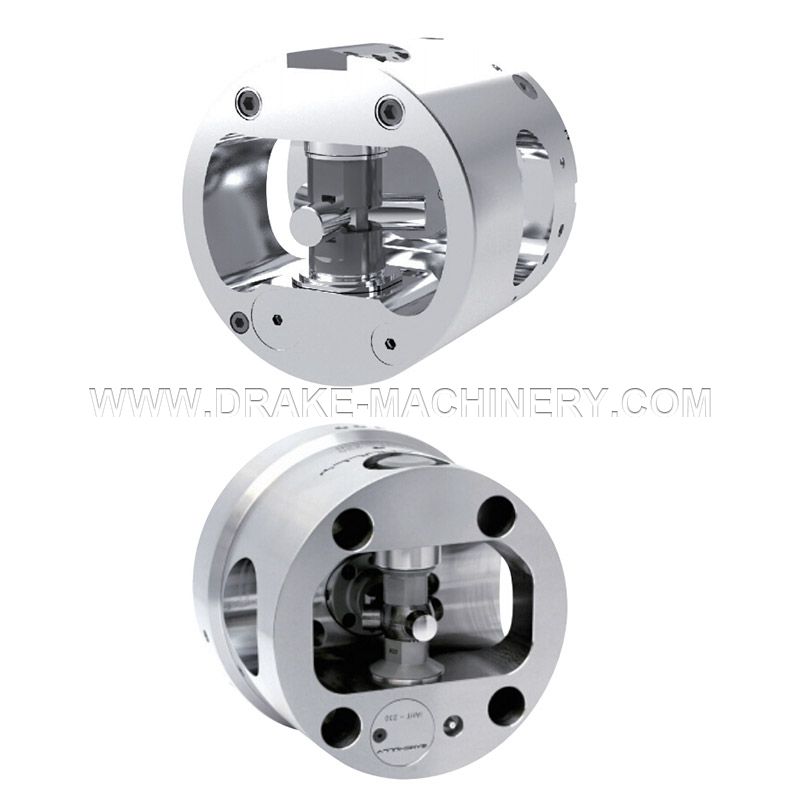

YFD Full Automatic Index Chuck

Product Parameters



Discover the cnc power chuck model that suits your requirements from the following parameters. As a leading cnc power chuck manufacturer, if you have any questions regarding selection, pricing, or technical aspects, please don't hesitate to reach out. Feel free to leave your email along with your inquiries, and our dedicated team will promptly get in touch with you for professional assistance!

Performance Parameters
Can achieve indexing angle of 4*90°,8*45°,3*120°.6*60°and special angle
MODEL/SPEC. The maximum axial loading window
G(mm)
 Jaw stroke
U(mm)
Piston area
(cm²)
 Maximum pressure (bar) Maximum speed
(r.p.m)
Rotating moment (kg.m²) Clamping jaw weight (kg)Body weight
(kg)
YFD-168''1259132530000.120.518
YFD-210''17515303530000.160.624
YFD-235''19715303528000.270.632
YFD-250''21617433525000.471.342
YFD-280''23917433522000.881.352
YFD-315''2612363.63520001.45280
YFD-360''3012363.63517002.05295
YFD-400''3333086.63512003.44128
YFD-460''3953086.63510006.45170
YFD-570''4664011335800126285
YFD-680''5764011335600297490


Size Parameter
MODEL/SPEC.ABCDGHIPQRTVWYZ
YFD-168''172140104.811125152230463333M818530
YFD-210''215170133.413175180335954836M820628
YFD-235''235170133.4131971903351025340M825828
YFD-250''254220171.4172162103441125646M8251032
YFD-280''275220171.4172392183441257058M8251232
YFD-315''315220171.4172612353501367763M10251229
YFD-360''360220171.41730126035015010086M10251229
YFD-400''4003002352133329135817011091M10251224
YFD-460''46030023521395321358200140121M10251224
YFD-570''570380330.227466435585270180150M10501850
YFD-680''680380330.227576485585320235205M10501850
