QZ3 Front Load Pneumatic Power Chuck

Upgrade your machining operations with the QZ3 Front-Load Pneumatic Chuck, a versatile and efficient tool holding solution. Benefit from swift tool changes, enhanced clamping force, and streamlined workflow, all while achieving precise and reliable machining results. Don't let inefficient tool changing processes slow you down—embrace the QZ3 Front-Load Pneumatic Chuck and experience a new level of machining efficiency.

Product Feature:

1.The connecting between the chuck and main shaft complies with the national standard (short cylinder connecting mode),so users only need to prepare right connection flange compatible with the machine tool and chuck instead of changing the machine tool structure during installation.

2.The whole installation process is quite easy. The chuck body is the cylinder, with piston and inverted valve inside to achieve super-long time pressure-keeping function(more than 24 hours).The clamping and lossing movement is achieved by rotary air inlet at the side.The machine will not work before cutting off the gas supply.

3.The chuck boasts advantages of less weight,big hole diameter, high stroke and high rotating speed,which is applicable for lathe, pipe thread machine tool and welding equipments.

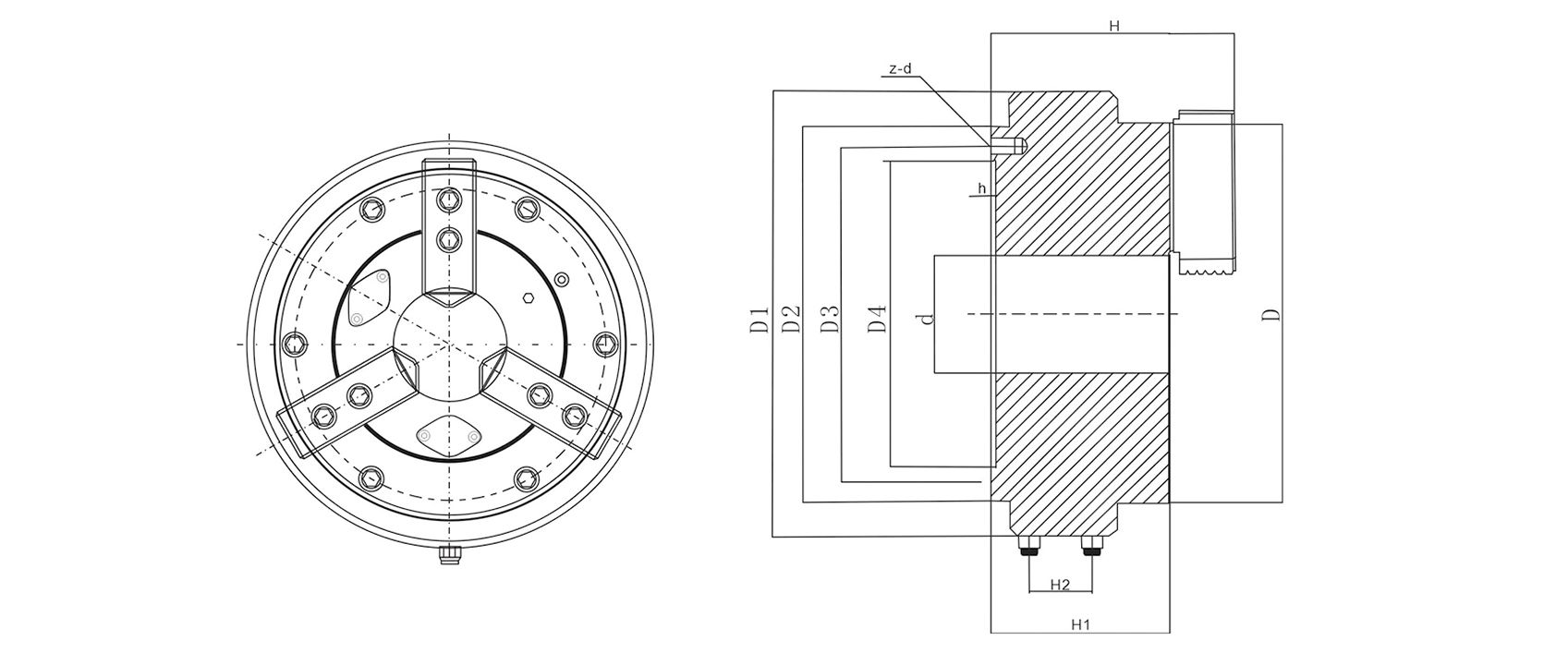

Product Drawings

QZ3 Front Load Pneumatic Chuck

Product Parameters



Discover the cnc power chuck model that suits your requirements from the following parameters. As a leading cnc power chuck manufacturer, if you have any questions regarding selection, pricing, or technical aspects, please don't hesitate to reach out. Feel free to leave your email along with your inquiries, and our dedicated team will promptly get in touch with you for professional assistance!

Performance parameters

Specification

Jaw stroke t

(Diameter

Max.grpping

force(KN)

Map Allowable

pressure (Map

Limited rotating

speed(r/min)

clamping range

Bracing range

Net weight ( kg)

Change
QZ3-033.2
3.20.4~0.942001.5~8020-904.2N
QZ3-053.7150.4~0.928502-13020-14014.2N
QZ3-064.2280.4~0.923002-17020-18024.2N
QZ3-084.741.70.4~0.920005-21020-24035.3Y
QZ3-105.458.20.4~0.9160010-26030-28048.5Y
QZ3-128.586.80.4~0.9120060-35040-36095.8Y
QZ3-1512.7820.4~0.975010-41050-410164Y
QZ3-2016.41280.4~0.965020-51050-510274Y
QZ3-2416.41910.4~0.950020-65080-610445Y


SpecificationDD1D2D3D4dHH1
H2hz-d
QZ3-0388
11082665512106853633-M6
QZ3-0513517513110895251331024253-M8
QZ3-06175
219171142130351431074253-M8
QZ3-08214258210180165521551154253-M10
QZ3-10256
300252226206801661224253-M12
QZ3-123253733212902701302131594556-M12
QZ3-154004483963683401702601945453-M16
QZ3-205005205004654402253142415253-M16
QZ3-246306306305955603003412692353-M16
