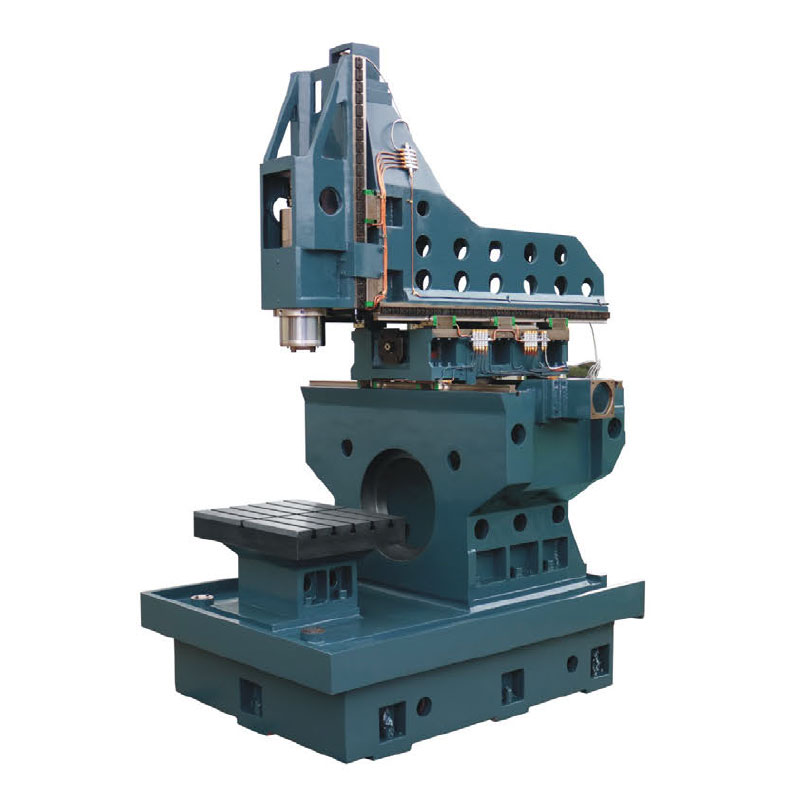

Vertical Machining Centre GP-V6

Product Drawings

ItemSizeGP-V6
TalbeTable Size600x450
Spacing of T-slots5-14x80
B Axis tilting range
C Axis rotating range
Max table rapid feedrate
Max.table load300kg
TraveMax.Xaxis travel600
Max.Y axis travel450
Max.Z axis trave400
Range of spindle nose to worktable100-500
SpindleTaperBT40
Max spindle speec12000rpm
Spindle drivendirect-drive
   Recommend the spindle motor power3.7Kw
Feed screvThree axis traverse speed48/48/48m/min
Pall eerew spec3216-C3
Recommend the motor torque>12N.m
ATC(option)TypeDisc cutter magazine
Number of mountable tool24
