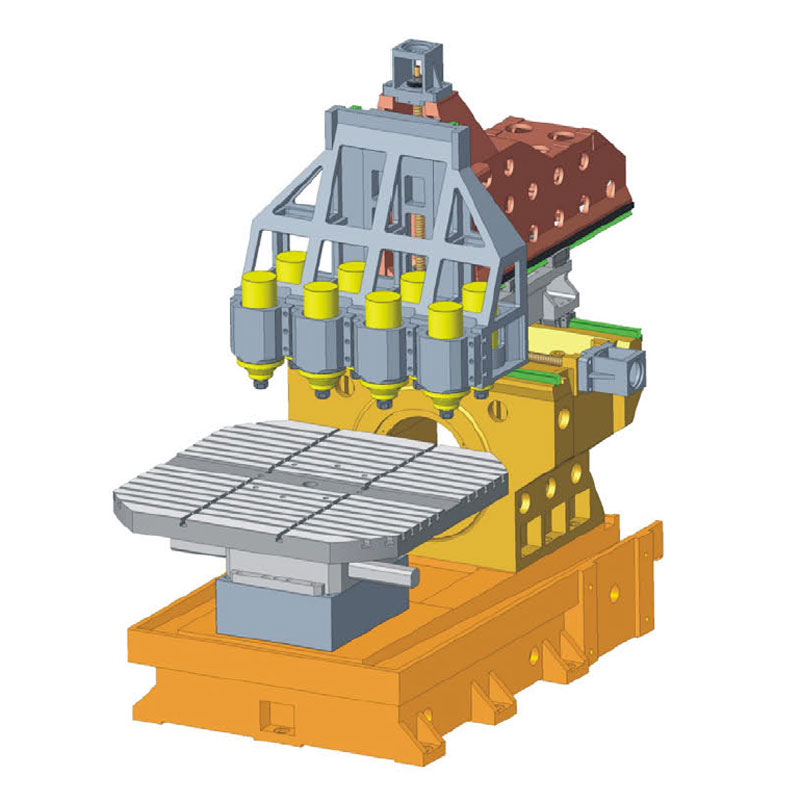

Eight Spindle Double Table Machining Centre GP-S8T

Product Drawings

ltemSizeGP-S8T
TalbeTable Size1150×1150
Spacing of T-slots2x7-14x63
BAxis tiltng range
C Axis rotating range
Max.table rapid feedrate
Max.table load300kg
TravelMax.Xaxis travel600
Max.Y axis travel450
Max.Z axis travel400
Range of spindlie nose to worktable100-500
SpindleTaperER25X8
Max.spindle speed18000rpm
Spindle drivenMOTOR SPINDLE
Recommend the spindle motor power4Kw
Feed screwThree axis traverse speed48/48/48m/min
Ball screw spec3216-C3
Recommend the motor torque>15N.m
ATCTypeNOT
