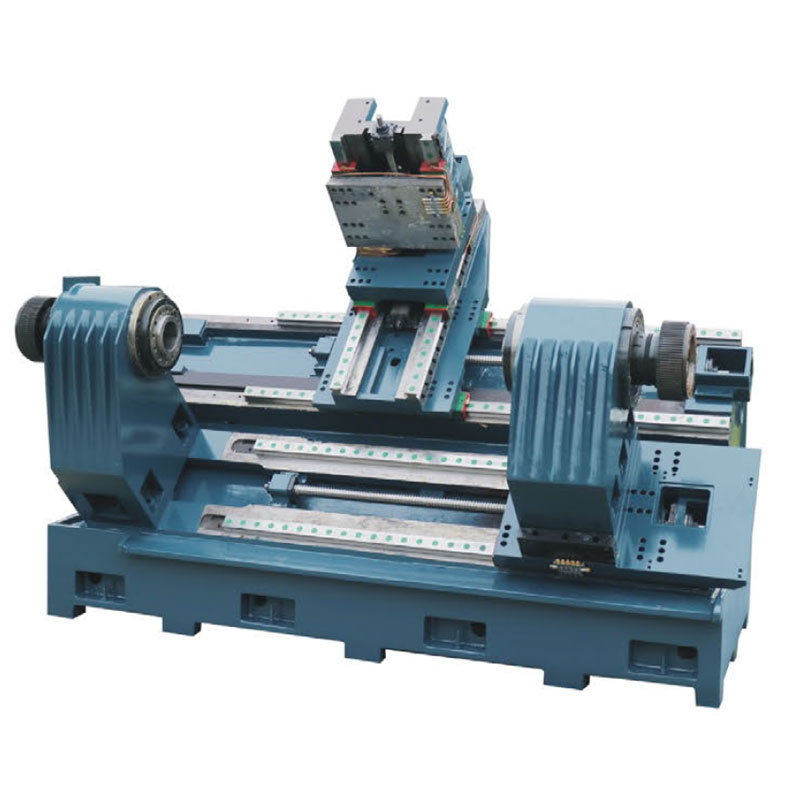

45°Turning & Grinding Centre(Double Spindle Single Turret Double Grinding Head) GP-500STM-Supplier

Product Drawings

I t em

Size

GP-500STM

Working rang

Max.Turning diameter over bed

φ680

Max.Turning swing dia.over carriage

φ400

Max.Turing diameter

φ500

Max.Length between both chucks

690

Max.Turning &Grinding length

300(Disc parts)

Max.X/Z axis tra

X1/X3/X5 axis

450/200/350

Z/Z3 axis

680/680

Max.Tailstock travel

680

Feed screw

Control axis

10Axis(X1+X3+X5+Z1+Z3+Z5+C1+C2+C3+C4)

X1/X3axis ball-screw

3210-C3

(N·m)Recommend theX1/X3axis motor torque

>10

X5 axis ball-screw

4010-C3

(N·m)Recommend the X5 axis motor torque

>15

Tailstock ball-screw

4010-C3

(N·m)Recommend talstock motor torque

>15

Bed

Bed slant angle

45° Integral cast bed

Linear guide's span

400

Spindle

(rpm)Max.spindle speed

main spindle:4500 back spindle:4500

Spindle through-hole diameter

main spindle:φ61 back spindle:φ61

Spindle nose size

main spindle:A2-6 back spindle:A2-6

(kW)Recommend the spindle motor power

main spindle:7.5 back spindle:7.5

Hydraulic chuck or collet chuck

main spindle:8 inch back spindle:8 inch
