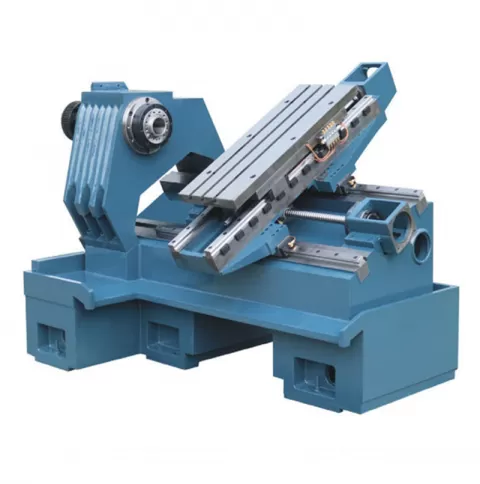

45°Turning Centre(Single Spindle Double Row Tool SlitterPiston Slitter) GP-500SP

Product Drawings

ItemSizeGP-500SP
Working rangeMax.Turning diameter over bedφ680
Max.Turning swing dia.over carriageφ250
Max.Turing diameterφ500
Max.Processing length350
Max.X/Z axis traX2/X4 axis230/160
Z2/Z4 axis570/570
R-axis (servo inner sleeve)100
Z5 axis (cylinder driven spindle)350

Feed screw
Control axis7Axis(X2+X4+Z2+Z4+Z5+C1+C2)
X2/X4 axis ball-screw3210-C3
(N·m)
Recommend theX2/X4 axis motor torque
>10
Z2/Z4axis ball-screw4010-C3
(N·m)
Recommend theZ2/Z4 axis motor torque
>15
ball-screw3210-C3
(N·m)
Recommend the R axis motor torque
>15
BedBed slant angle45° Integral cast bed
Linear guide's span400
spindle(rpm)Max.spindle speed3000
Spindle through-hole diameterφ88standard equipment
Spindle nose sizeA2-8
(KW)Recommend the spindle motor power11
Hydraulic chuck or collet chuck10inch
Hydraulic TailstockDiameter of Tallstock center sleeveφ100
Max.stroke of Tallstock center sleeve100
Taper of Tailstock center sleeveMT4
