Product Drawings
| l tem | S i z e | GP-500STY | |||||||||||||||||||||||||
| Working range | Max.Turning diameter over bed | φ680 | |||||||||||||||||||||||||
| Max.Turning swing dia.over carriage | φ380 | ||||||||||||||||||||||||||
| Max.Turing diameter | φ250(When the X and Y axes and the power turret are protected as a whole) | ||||||||||||||||||||||||||
| Max.Length between both chucks | 560 | 580 | |||||||||||||||||||||||||
| Max.Processing length | 540 | 560 | |||||||||||||||||||||||||
| Max.X/Z axis | X2/X4 axis | 230/160 | |||||||||||||||||||||||||
| Y2 axis | 120 | ||||||||||||||||||||||||||
| Z2/Z4 axis | 570/570 | ||||||||||||||||||||||||||
| Max.Talistock travel | 570 | ||||||||||||||||||||||||||
| Feed screw | Control axis | 8Axis(X2+X4+Y2+Z2+Z4+Z5+C1+C2) | |||||||||||||||||||||||||
| X2/X4 axis ball-screw | 3210-C3 | ||||||||||||||||||||||||||
| (N·m) Recommend theX2/X4 axis motor torque | >10 | ||||||||||||||||||||||||||
| Y2 axis ball-screw | 3208-C3 | ||||||||||||||||||||||||||
| (N·m)Recommend the Y2 axis motor torque | >10 | ||||||||||||||||||||||||||
| Z2/Z4 axis ball-screw | 4010-C3 | ||||||||||||||||||||||||||
| (N·m) Recommend the Z2/Z4axis motor torque | >15 | ||||||||||||||||||||||||||
| Z5 axis ball-screw | 4010-C3 | ||||||||||||||||||||||||||
| (N·m)Recommend the Z5 axis motor torque | >15 | ||||||||||||||||||||||||||
| Bed | Bed slant angle | 45° Integral cast bed | |||||||||||||||||||||||||
| Lnear guide's span | 400 | ||||||||||||||||||||||||||
| Spindle | (rpm)Max.spindle speed | main spindle:3000 back spindle:4500 | main spindle:4500 back spindle:4500 | ||||||||||||||||||||||||
| Spindle through-hole diameter | main spindle:φ79 back spindle:φ61 | main spindle:φ61 back spindle:φ61 | |||||||||||||||||||||||||
| Spindle nose size | main spindle:A2-6 back spindle:A2-6 | main spindle:A2-6 back spindle:A2-6 | |||||||||||||||||||||||||
| (KW)Recommend the spindle motor power | main spindle:11 back spindle:7.5 | main spindle:7.5 back spindle:7.5 | |||||||||||||||||||||||||
| Hydraulic chuck or collet chuck | main spindle:10 inch back spindle:8 inch | main spindle:8 inch back spindle:8 inch | |||||||||||||||||||||||||
Related Products
-gp-500.jpg "45°Integrated Slant-bed CNC Lathe(Linear Rail, Turret-mounted) GP-500")
45°Integrated Slant-bed CNC Lathe(Linear Rail, Turret-mounted) GP-500
-gp-500strym.jpg "45° Turning and Grinding Centre (Double Spindle Single Turret Double Y-axis Single Grinding Head) GP-500STRYM")
45° Turning and Grinding Centre (Double Spindle Single Turret Double Y-axis Single Grinding Head) GP-500STRYM

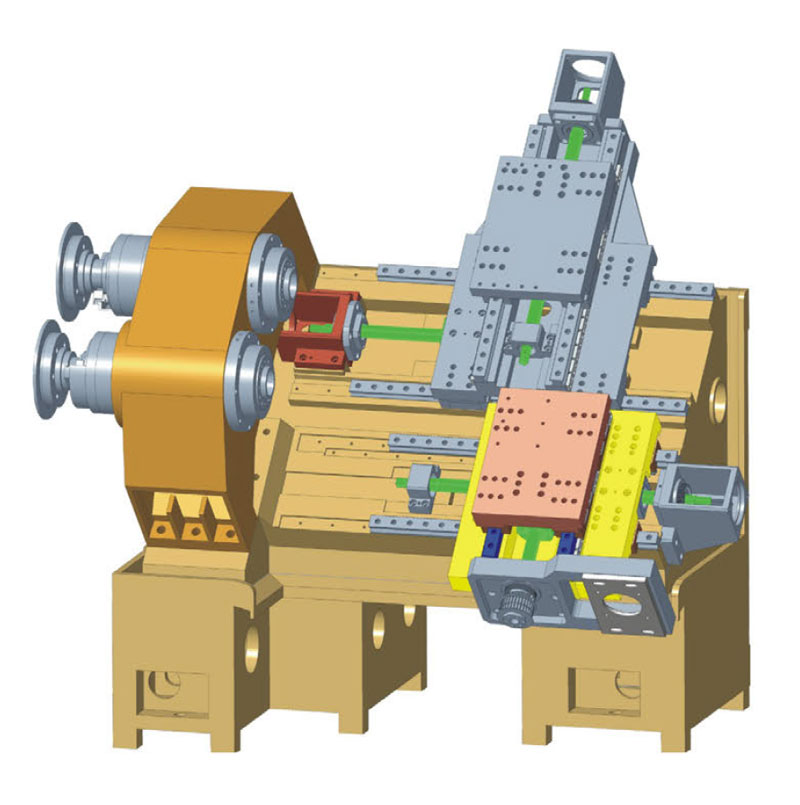

gp-34st.jpg "45°Parallel Double Spindle Upper and Lower Turret Light Machine(Linear Rail)GP-34ST")
