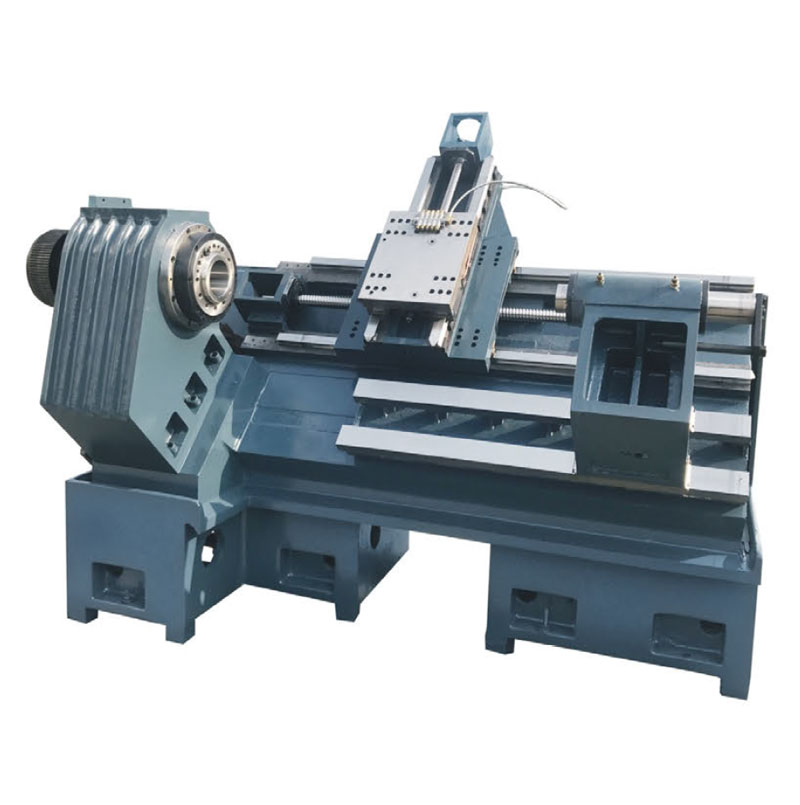

45°Single Spindle Single Turret Single Y-axis Turning Centre Optical(Linear Rail)

Product Drawings

ltemSizeGP-400Y
Working rangeMax.Turning diameter over bedφ580
Max.Turning swing dia over carriageφ330
Max.Turing diameterφ250(When the X, Y axis and power tool turret are protected as a whole)
Max.length between chuck and tailstock cente500
Max.Processing length450

Max,X/Z axis rave
Xaxis230
Yaxis120
Z axis530
R axis(Tailstock travel)530
Feed screwControlaxis5Axis(X2+Y2+Z2+R+C1)
Xaxis ball-screw3208-C3
(N·m)Recommend the X axis motor torque>10
Y axis ball-screw3208-C3
(N·m)Recommend the Y axis motor torque>10
Zaxis ball-screw3208-C3
(N·m)Recommend the Zaxis motor torque>15
R axis ball-screw3208-C3
(N·m)Recommend the R axis motor torque>10

Bed slant angle45° integral casting bed
Linear guide's span400
Spindle(rpm)Max.spindle speed4500
Spindle through-hole diameterφ61
Spindle nose sizeA2-6
(KW)Recommend the spindle motor power7.5
Hydraulic TailstockDiameter of Tallstock center sleeveφ80
Max.stroke of Tailstock center sleeve120
Taper of Tailstock center sleeveMT4
