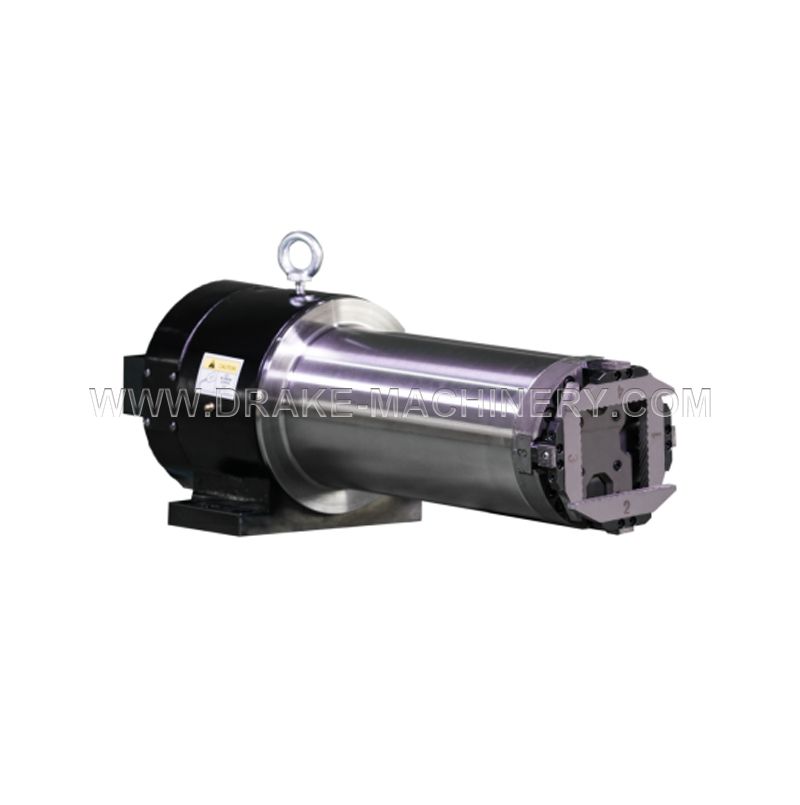

RY160B rear chuck

Optional chuck claw:

（1）Standard claw;Optional jaws:I-beam and Channel steel jaw;

（2）Claw clamping range:

Recommended gear:

Driven gear: RY240-10-0310 driven gear (Mn2.5Z72)

Drive gear: RY240-10-0320 drive gear (Mn2.5Z24), the drive gear can be customizable.

Recommended speed reducer and motor power:

Recommended reducer: Xinbao VRB-090, reducer speed ratio: 5or7

Recommended motor power: 0.85KW

Structural features:

1. One-piece fully enclosed helical gear transmission structure: higher dustproof performance and operational stability, longer service life and better user experience;

2. Universal installation dimensions of the whole series: RY130, RY160, RY220 series of universal dimensions of the rear chuck, saving the cost of bed management for each user;

3. The whole of the fine grinding chuck: The whole of the chuck is used as the reference surface for installation and positioning, which is convenient for users to install and debug;

4. Internal front cylinder transmission structure: the cylinder is directly pushed, and the clamping force is stable and reliable with the change of air pressure, which provides the basis for high bearing capacity performance;

5. Fully-sealed design of jaws: RY130. RY160. RY220 series barrel rear chuck has unique fully-sealed jaws, which reduces the possibility of jamming and reduces the need for manual maintenance.
