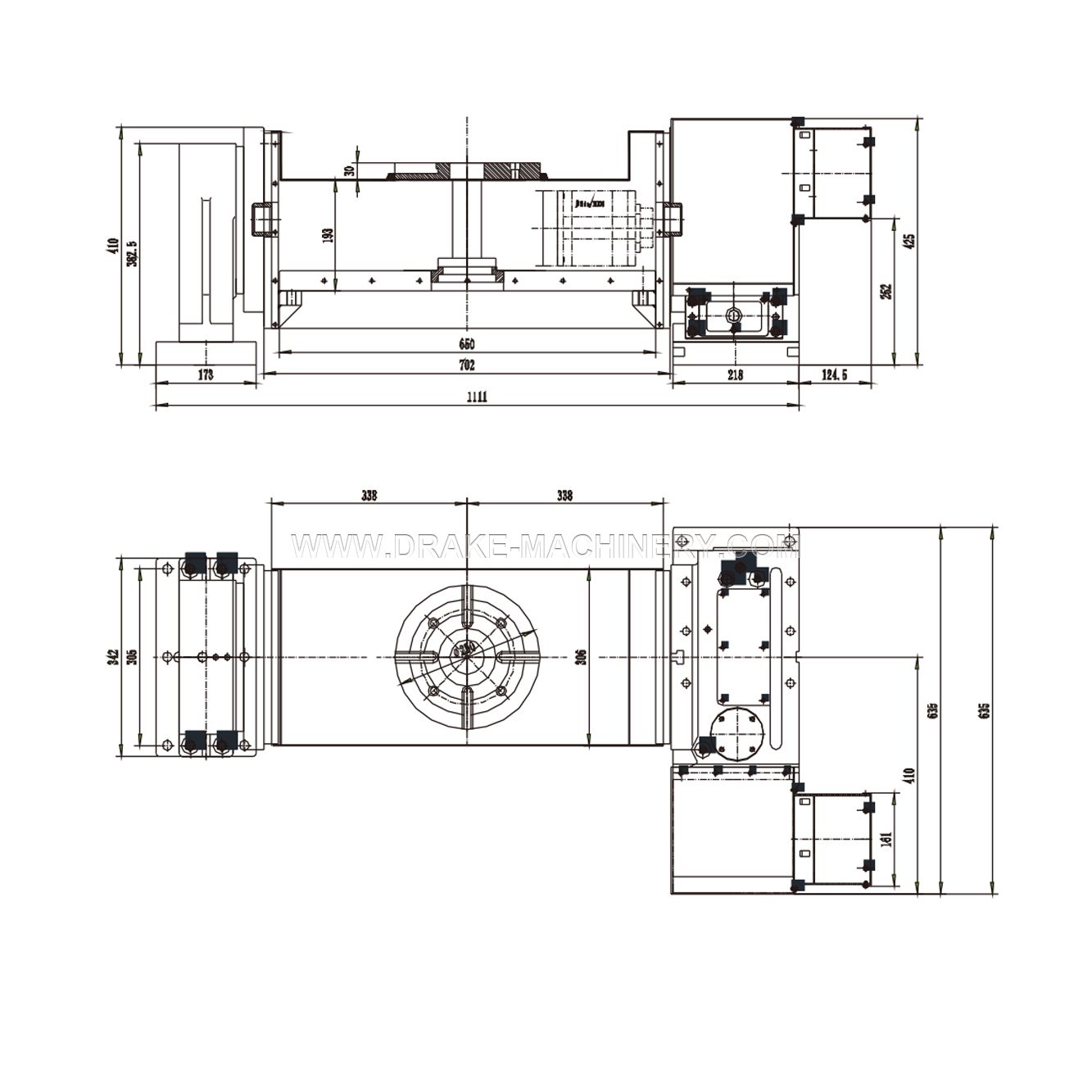

Product Drawings
Product Parameters
| Specifications and technical parameters | ||||
| Model | WGTR-250 | |||
| Specification | ||||
| Diameter of rotating shaft | ∅250mm | |||
| Spindle center hole | ∅40H7mm | |||
| Through hole in the center of the spindle on the disc surface of the rotating shaft | ∅28mm | |||
| The height of the rotating shaft when the disk surface is horizontal | 310mm | |||
| The total height of the rotating shaft at 90° | 420mm | |||
| The height of the rotation center when the surface of the rotation axis is 90° | 320mm | |||
| Width of T-slot on the surface of the rotating shaft | 12mm | |||
| The maximum machining range of the surface of the rotating shaft | ∅250mm | |||
| Datum key | 18mm | |||
| Locking device air pressure | 35kg/cm2 | |||
| Axis | Axis of rotation | Tilt axis | ||
| Minimum split angle | 0.001° | 0.001° | ||
| Maximum speed （Motor 2000rpm） | Turntable maximum speed | 22（r.p.m） | 11（r.p.m） | |
| Total reduction ratio | 1/90 | 1/180 | ||
| Linkage allowable cutting torque | 16（kgf-m） | 16（kgf-m） | ||
| Segmentation accuracy | 15" | 15" | ||
| Repeatability | 4" | 4" | ||
| Tilt axis tilt angle range（Horizontal = 0°） | - 110° ~ + 110° | |||
| Tightening torque | F | 600(kgf) | ||
| F×L | 48(kgf-m) | |||
| F×L | 85(kgf-m) | |||
| Allowable work load | 0° | 80kg | ||
| 0°~90° | 50kg | |||
| Tilt and swing torque | W×L | 10(kgf-m) | ||
| Gross weight | 500kg | |||
