WGNC Large Bore Hydraulic Brake Series Supplier

Product Parameters

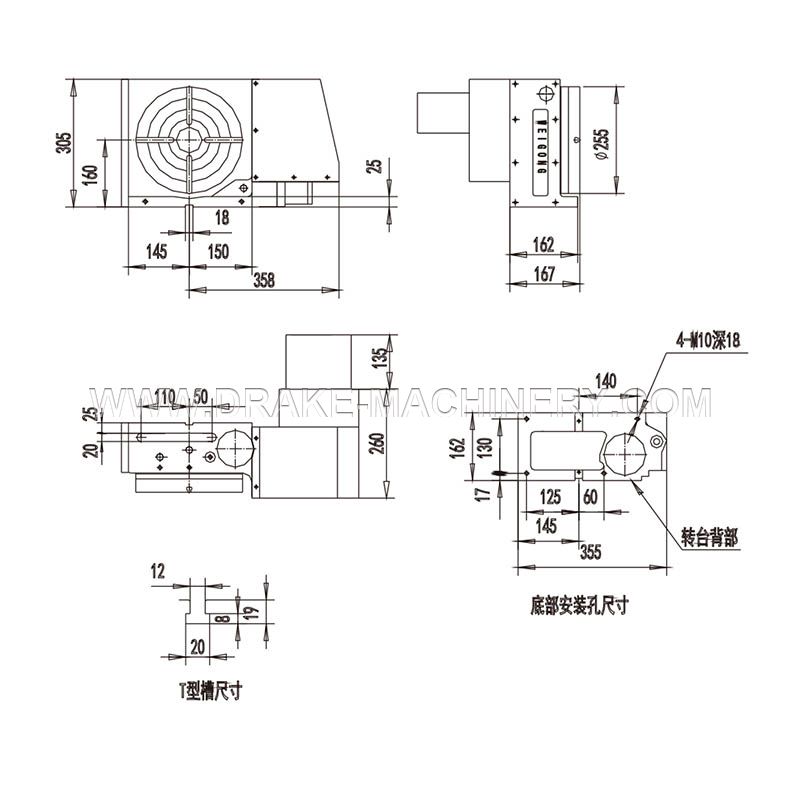

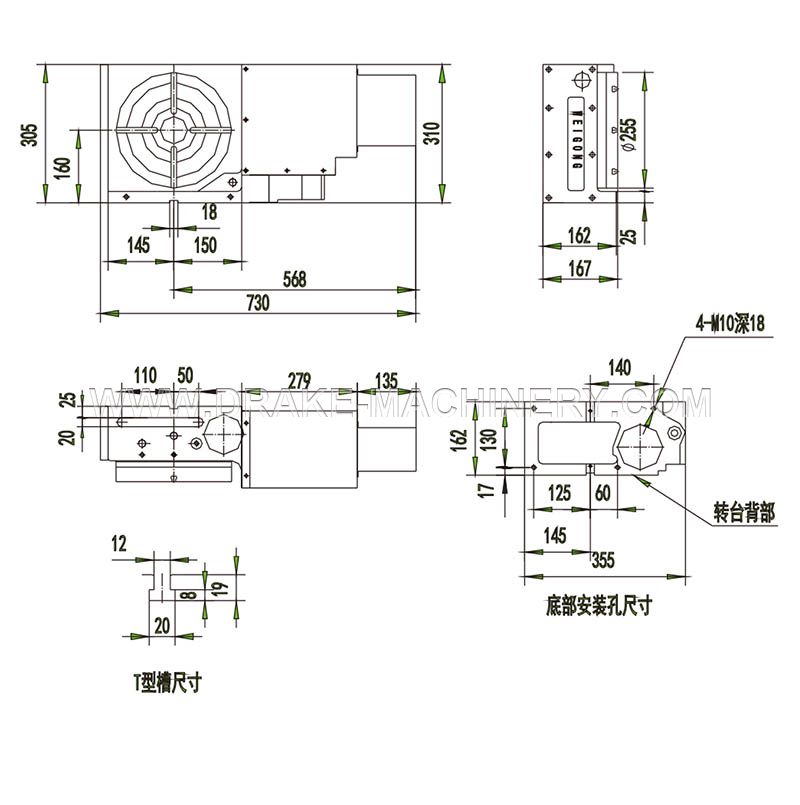

Specifications and technical parameters
Model	WGNC-255DA/255DN
Specification
Rotary table diameter	∅255mm
Table height (horizontal position)	165mm
Center Height (Vertical position)	160mm
Total height	346mm
Through Aperture	∅60mm
Center hole diameter	∅60mm
Table T-slot width	12mm
Datum positioning block width	18mm
Number of worm gear teeth	72
Servo motor (top brand according to customer needs)	FANUC		MITSUBISHI
	β iS8	a iF4	HA 83	HF 104
Total reduction ratio	1/180
Minimum setting unit	0.001°
Maximum number of revolutions	16.6r.p.m（3000r.p.m)
Locking device air pressure	35kg/cm2
Clamping torque	50kg-m（35kg/cm2）
Indexing accuracy	15"
Repeatability	4"
Allowable work load	Horizontal use	250kg
	Vertical use	100kg
	Use the tailstock	250kg
A allowable working inertia	15kg-cm-sec2
Allowable cutting torque	60kg-m
Allowable working diameter	∅255mm
Weight (without motor)	88kg
