WGNC-500×500 Hydraulic brake series

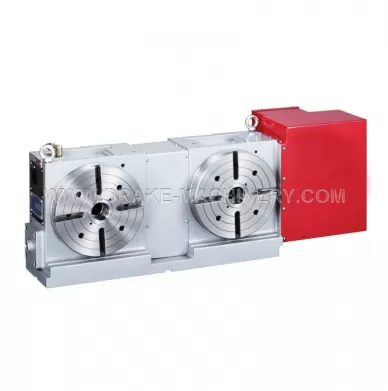

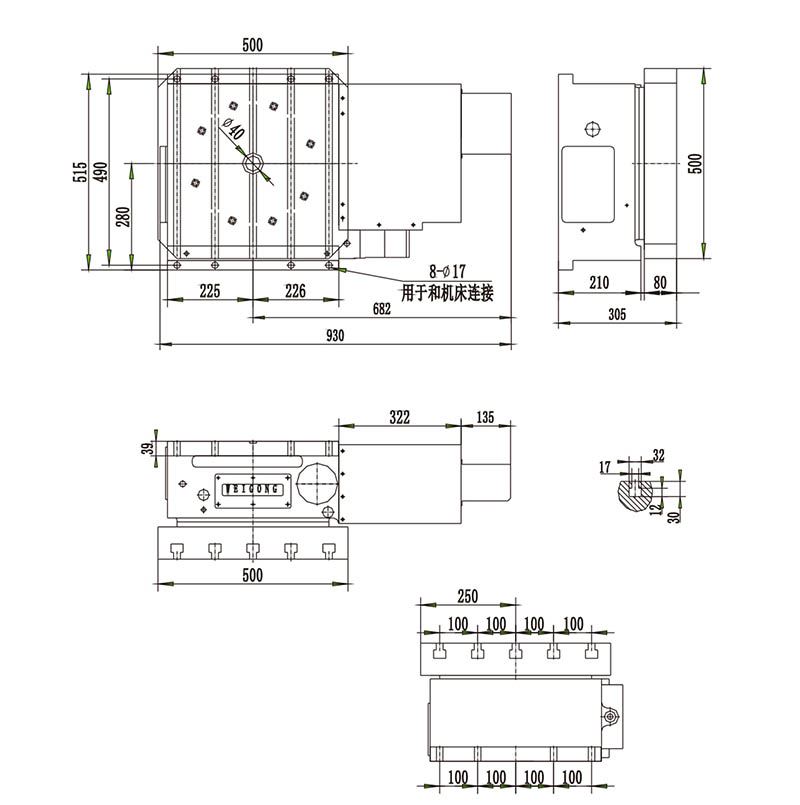

Product Drawings


Product Parameters



Specifications and technical parameters
ModelWGNC-500*500
Specification
Rotary table diameter500*500mm
Table height (horizontal position)305mm
Center Height (Vertical position)255mm
Total height465mm
Through Aperture∅51mm
Center hole diameter∅40mm
Table T-slot width12mm
Datum positioning block width18mm
Number of worm gear teeth72
Servo motor (top brand according to customer needs)FANUCMITSUBISHI
β iS22a iF12HA 100HF 204
Total reduction ratio1/180
Minimum setting unit0.001°
Maximum number of revolutions11.1r.p.m(2000r.p.m)
Locking device air pressure35kg/cm2
Clamping torque90kg-m(35kg/cm2)
Indexing accuracy15"
Repeatability4"
Allowable work loadHorizontal use   500kg
Vertical use   200kg
Use the tailstock   500kg
A allowable working inertia38.5kg-cm-sec2
Allowable cutting torque120kg-m
Allowable working diameter∅400mm
Weight (without motor)262kg
