WGNC-400DA DN Large Bore Hydraulic Brake System

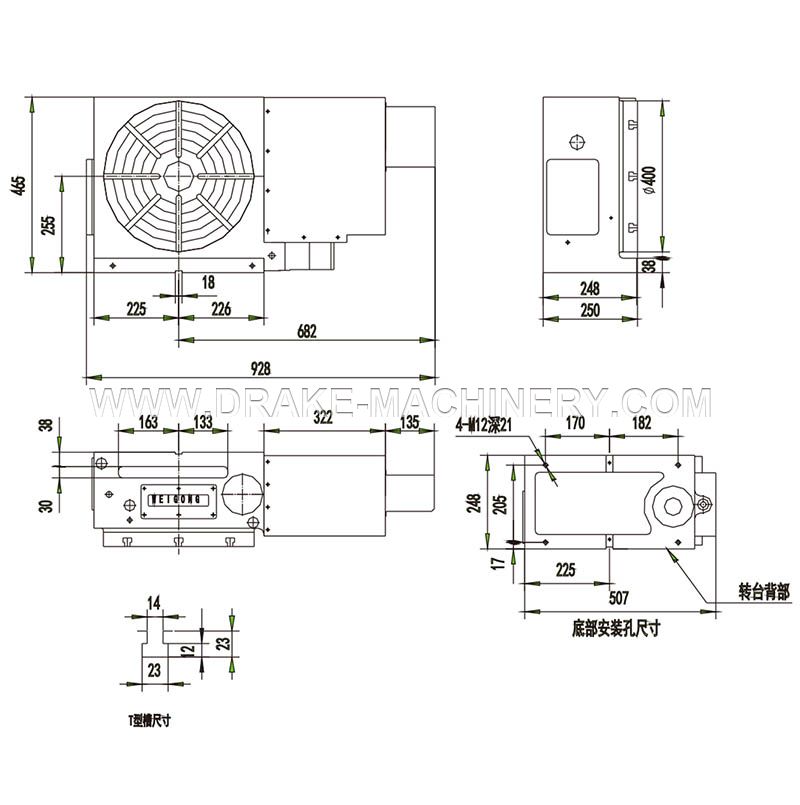

Product Drawings

WGNC-400DA DN Large Bore Hydraulic Brake System

WGNC-400DA DN Large Bore Hydraulic Brake System


Product Parameters



Specifications and technical parameters
ModelWGNC-400DA/400DN
Specification
Rotary table diameter∅400mm
Table height (horizontal position)250mm
Center Height (Vertical position)255mm
Total height465mm
Through Aperture∅80mm
Center hole diameter∅80mm
Table T-slot width14mm
Datum positioning block width18mm
Number of worm gear teeth72
Servo motor (top brand according to customer needs)FANUCMITSUBISHI
β iS22a iF12HA 100HF 204
Total reduction ratio1/180
Minimum setting unit0.001°
Maximum number of revolutions11.1r.p.m(2000r.p.m)
Locking device air pressure35kg/cm2
Clamping torque90kg-m(35kg/cm2)
Indexing accuracy15"
Repeatability4"
Allowable work loadHorizontal use500kg
Vertical use200kg
Use the tailstock500kg
A allowable working inertia38.5kg-cm-sec2
Allowable cutting torque120kg-m
Allowable working diameter∅400mm
Weight (without motor)262kg
