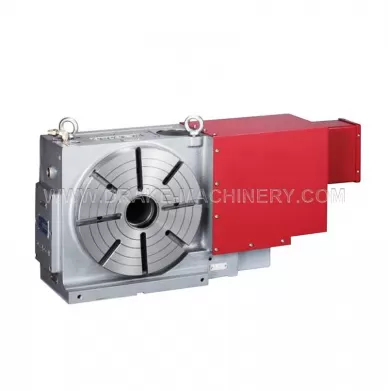

Product Drawings
Product Parameters
| Specifications and technical parameters | ||
| Model | WGNC-200-T2 | |
| Specification | ||
| Diameter of rotating shaft | ∅200mm | |
| Spindle center hole | ∅40H7mm | |
| Through hole in the center of the spindle on the disc surface of the rotating shaft | ∅27mm | |
| Overall height of horizontal placement | 175mm | |
| Total vertical height | 280mm | |
| T-slot width | 12mm | |
| Base key width | 18mm | |
| Locking device air pressure | 35kg/cm2 | |
| Minimum split angle | 0.001° | |
| Maximum speed （Motor 2000rpm） | Turntable maximum speed | 22（r.p.m） |
| Total reduction ratio | 1/90 | |
| Servo motor (optional) | FAUNC | a4/β8 |
| MITSUBISHI | HF54 | |
| Segmentation accuracy | 15" | |
| Repeatability | 4" | |
| Tilt axis tilt angle range（Horizontal = 0°） | - 110° ~ + 110° | |
| Tightening torque | F | 600(kgf) |
| F×L | 20(kgf-m) | |
| F×L | 20(kgf-m) | |
| Allowable work load | 0° | 150kg |
| 0°~90° | 75kg | |
| Total weight (without motor) | 130kg | |
