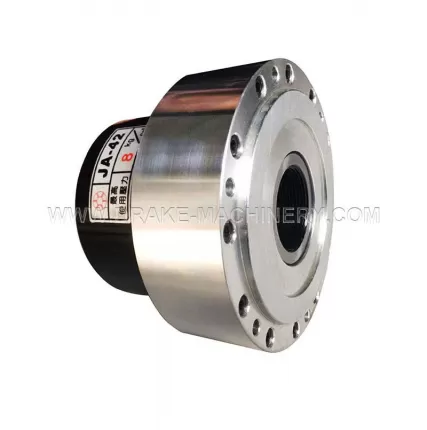

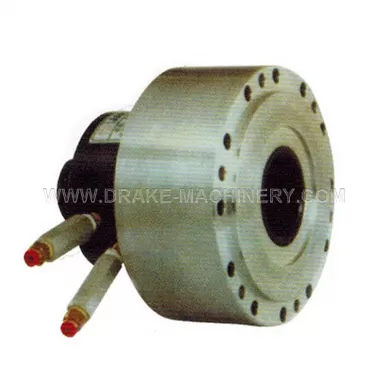

● 150 series hollow air pressure rotary cylinder is the high-speed,high-performance single cylinder rotary cylinder.
● Specially designed for the 3 jaw chuck and collet chuck of high speed small CNC lathe.
● 150 rotary cylinder drives front passive chuck by compressing air. Two forms of work: thrust and pull.
● Cylinder block does not produce heat when the pneumatic rotary cylinder works.
● The work piece does not fall off when the air source interrupted, with Spring lock inside.

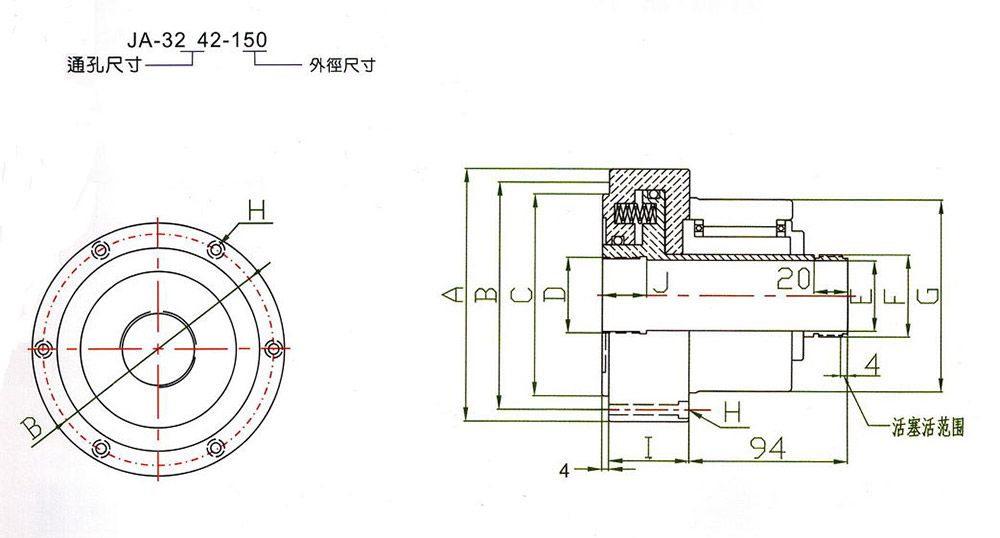

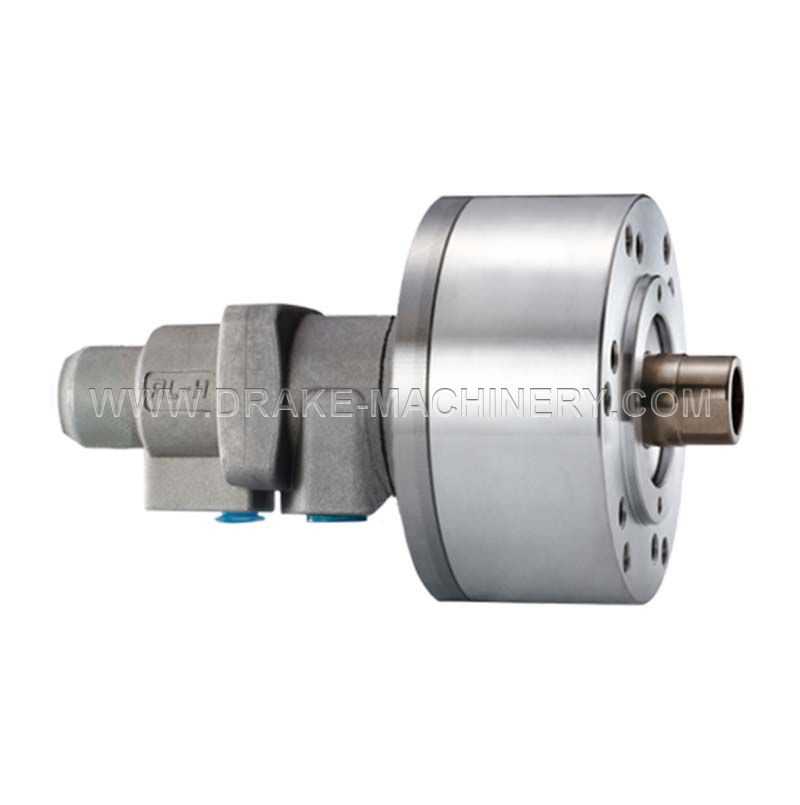

Product Drawings
Product Parameters
● High speed short form, large Through-Hole, are light-weight.
● Meanwhile, the compactness and miniaturization lower the burden of machines.
● With built-in"check valve", work pieces can be effectively prevented from flying out during abrupt failure of pressure.
● Easy instauation, the optional front end or back end screw it.
| Dimensions(mm) | ||||||||||||||||||
| Spec | A(Pistion Dia) | B | D1 | D2 | E(H7) | F1 | F2(H8) | G1 | G2 | H | J | K | L1 | L2 | M1 | M1 | ||
| Model | max | min | max | min | ||||||||||||||
| TK-428 | 90 | 124 | 100 | 108 | 80 | 40 | 30 | 10 | 0 | 35 | 25 | 61 | 94.5 | 139 | 25 | 13 | M33x1.5 | 6-M8x65 |
| TK-532 | 105 | 141 | 115 | 125 | 100 | 48 | 35 | 15 | 40 | 70 | 107.5 | 148 | M38x1.5 | |||||
| TK-536 | 38 | M42x1.5 | 6-M8x75 | |||||||||||||||
| TK-642 | 125 | 156 | 130 | 140 | 65 | 45 | M50x1.5 | |||||||||||
| TK-646 | 50 | M55x1.5 | ||||||||||||||||
| TK-846 | 145 | 185 | 170 | 165 | 130 | 70 | 20 | 45 | 72 | 150 | 30 | 12 | ||||||
| TK-852 | 55 | M60x1.5 | ||||||||||||||||
| Dimensions(mm) | ||||||||||||||||
| Spec | M3 | M4 | M5 | O | P | Q1 | Q2 | R | S | T | U | V | W1 | W2 | X | Y |
| Model | ||||||||||||||||
| TK-428 | 6-M8x16 | M34x1.5 | 4-M5 | 28 | 99 | 9 | 24 | 32 | 52 | 60 | 88 | 6 | 56.5 | 100 | 44 | 76 |
| TK-532 | 6-M10x16 | M44x1.5 | 4-M5x6 | 32 | 108 | 30 | 42 | 62 | 70 | 98 | 62 | 110 | 54 | 83 | ||
| TK-536 | 36 | |||||||||||||||
| TK-642 | 12-M10x20 | M52x1.5 | 42 | 32 | 50 | 76 | 85 | 116 | 70 | 120 | 64 | 98 | ||||
| TK-646 | 46 | |||||||||||||||
| TK-846 | M58x1.5 | 4-M6x6 | 110 | 36 | 56 | 85 | 96 | 128 | 7 | 79 | 130 | 73 | 110 | |||
| TK-852 | 52 | |||||||||||||||
| Specifications | ||||||||||
| Spec | Eff piston area(cm²) | Piston stroke(mm) | Max. Speed (r/min) | Max. pressure MPa(kgf/cm²) | Max.pull force kgf(KN) | Moment of inertial (kg.m²) | Weight(kg) | Total oil leakage (l/min) | ||
| Model | Extend | Retract | Extend | Retract | ||||||
| TK-428 | 51.9 | 51 | 10 | 7000 | 40(4.0) | 1868(18.3) | 1836(18) | 0.01 | 5.8 | 2.6 |
| TK-532 | 70.8 | 68.5 | 15 | 6000 | 2548(25) | 2466(24.2) | 0.012 | 6.1 | 3 | |
| TK-536 | ||||||||||
| TK-642 | 99.1 | 88 | 3567(35) | 3168(31) | 0.018 | 8.5 | ||||
| TK-646 | ||||||||||
| TK-846 | 135.3 | 125 | 20 | 5500 | 4870(47.7) | 4500(44.1) | 0.035 | 11.8 | 3.9 | |
| TK-852 | ||||||||||
| The drain port should be independently connected to oil tank to avoid back pressure. | ||||||||||
