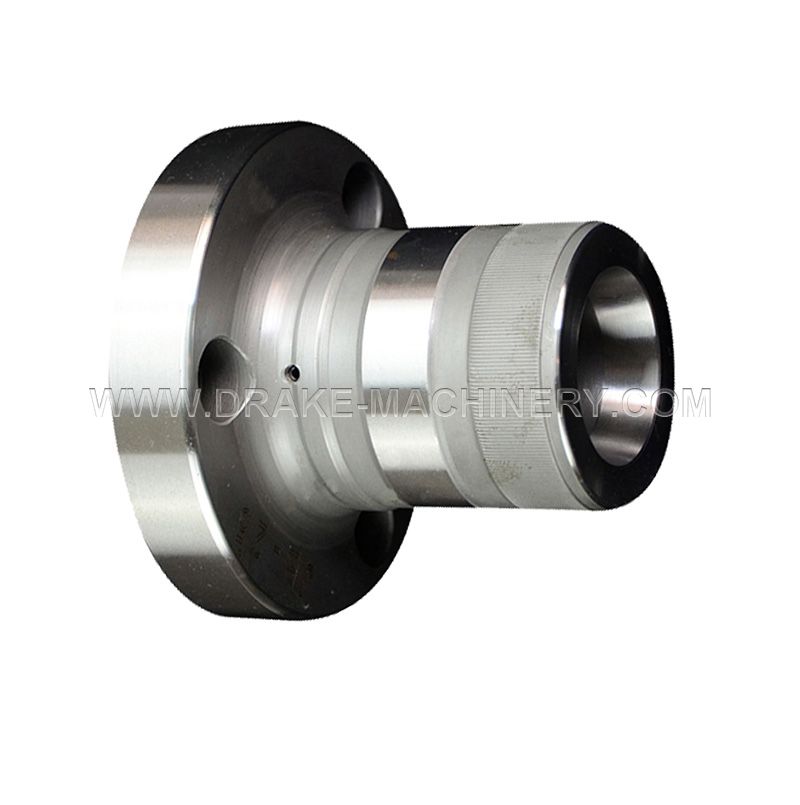

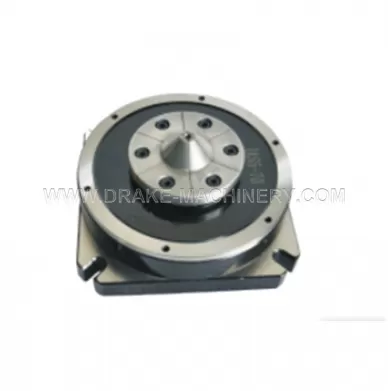

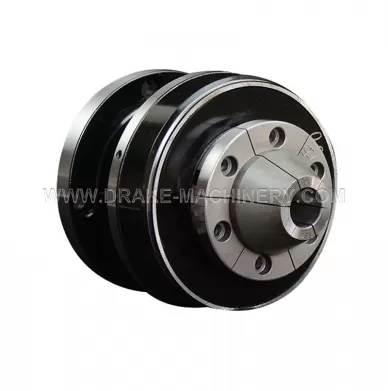

Product Features:
All steel design.
Heat treatment steel integrally formed structure body accuracy within 0.005mm.
Suitable for: NC lathe, car smell, grinder.

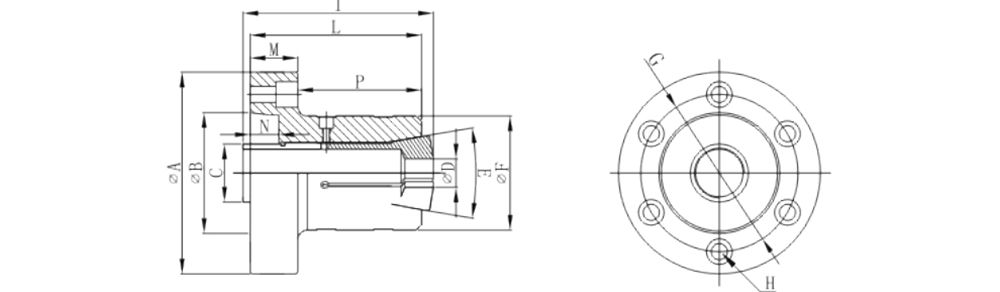

Product Drawings
Product Parameters
Discover the CNC collet chuck model that suits your requirements from the following parameters. As a leading collet chuck manufacturer, if you have any questions regarding selection, pricing, or technical aspects, please don't hesitate to reach out. Feel free to leave your email along with your inquiries, and our dedicated team will promptly get in touch with you for professional assistance!
| Type | JB-15 | JB-25 | JB-40 | JB-60 |
Installation | Straight Type | A2-4 | A2-5 | A2-6 |
| A | 80 | 106 | 132 | 164 |
| B | 55 | 63.513 | 82.563 | 106.375 |
| C | M18*1.2 | 31.3*20 | M47.5*1.75 | M72*2 |
| D(Max) | 13.5 | 25.5 | 40.5 | 62 |
| E | 30° | 20° | 20° | 20° |
| F | 45 | 60 | 72 | 100 |
| G | 66 | 82.6 | 104.8 | 133.4 |
| H | 3-M6 | 3-M8 | 3-M10 | 3-M12 |
| I | 77.9 | 100 | 112 | 125 |
| L | 75 | 90 | 90 | 108 |
| M | 20 | 25 | 25 | 25 |
| N | 5 | 15 | 15 | 20 |
| P | 55 | 65 | 65 | 83 |
| Matching Collet | YB-15 | YB-25 | 16C | 20C |
| Maximum speed (rpm/min) | 6000 | 6000 | 6000 | 5000 |
| ★The above product data is for reference only, can be changed according to the needs of the workpiece, and can be customized according to the workpiece and processing requirements. ★ Product continuous improvement, please contact us if there are any changes to this catalogue parameter. Subject to final confirmation parameters! | ||||
