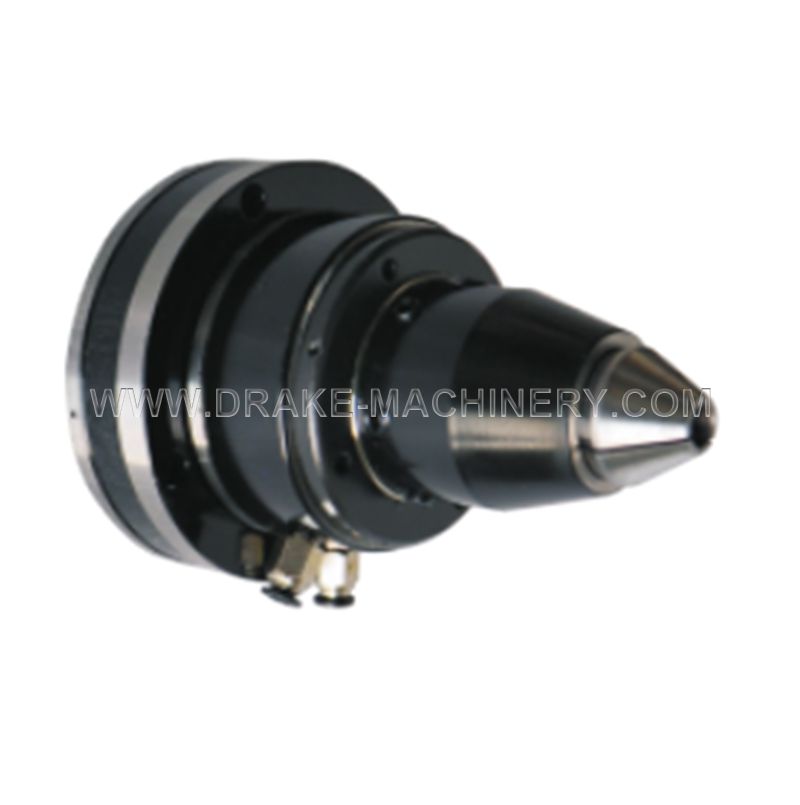

JAB-W25 Adjustable Precision High Speed Chuck

Product Features:

Heat-treated steel integrally formed structure, bearing no load, high speed, long life and low temperature rise.

The two-way power is used to force open the collet and never jam. When the air source is interrupted, the collet is self-locking.

The direct flange is connected to the main shaft, which is convenient and quick to install. It can be connected to the machine smell system through a three-point combination air valve.

Quickly change the collet to facilitate product replacement, the collet does not retract, and the working length can be controlled normally.

The accuracy of the body is within 0.005mm, and the adjustable clamping accuracy is within 0.002.


Product Suitability:

NC lathes, lathes, grinding machines, indexing plates, 4/5 axes.

Precision workpieces, precision tooling, turning and machining.

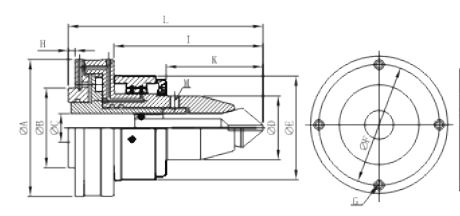

Product Drawings

JAB-W25 Adjustable Precision High Speed Chuck

Product Parameters




Discover the CNC collet chuck model that suits your requirements from the following parameters. As a leading collet chuck manufacturer, if you have any questions regarding selection, pricing, or technical aspects, please don't hesitate to reach out. Feel free to leave your email along with your inquiries, and our dedicated team will promptly get in touch with you for professional assistance!

Size parameters
Model/Spec.ABC
DEFGHIKLM
JAB-W25120.3702556911064-M56131851716-M8


Model/Spec.Max. Speed
(rpm/min)
Piston stroke
(mm)
Clamping Stroke
(mm)
Maximum torque
(N.m)
Using air pressure
(kg/cm²)
Clamping range
(mm)
Matching colletNet weight
(kg)
Maximum use pressure
(kg)
JAB-W25400041.5-215 3~85~25YB-259.53~8


★The above product data is for reference only, can be changed according to the needs of the workpiece, and can be customized according to the workpiece and processing requirements.

★ Product continuous improvement, please contact us if there are any changes to this catalogue parameter. Subject to final confirmation parameters!
