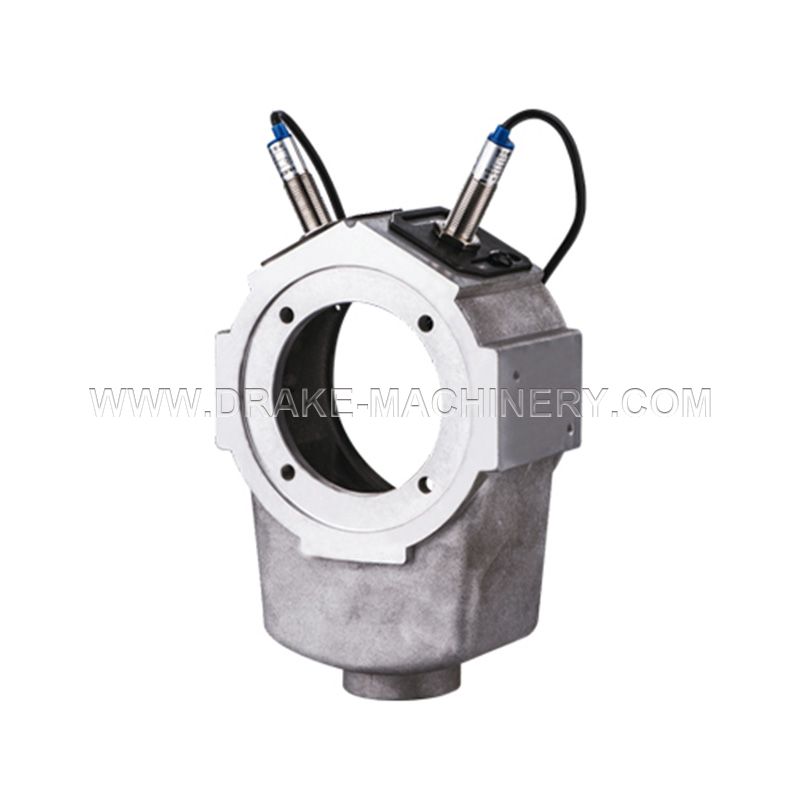

JSJS-X Coolant Collector with Stroke Control

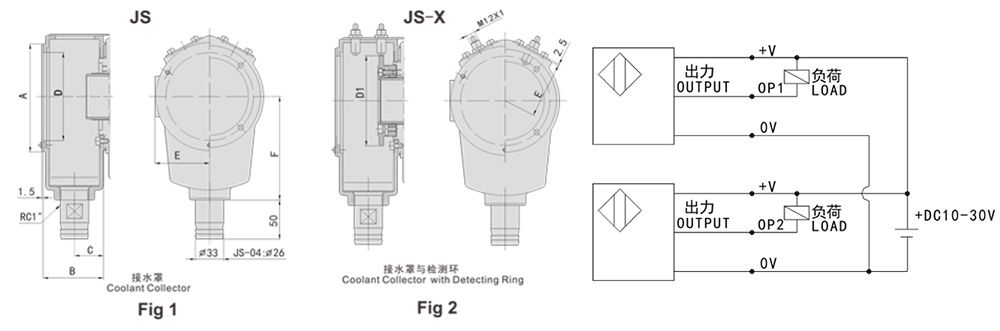

Product Drawings

JSJS-X Coolant Collector with Stroke Control

Product Parameters



Size parameters
Model/Spec.H-1H-2H-3H-4H-5H-6H-7H-8H-9H-10H-11H-12H-13Serration PitchReference Drawing3 jaw weight
(kg)
HJ05532327.510430.51422.513.58.510M861.5×60°
0.4
HJ0667313512539.52027.5171112M10111.5×60°
1
HJ08863551145312518191312M12121.5×60°
1.9
HJ1099.54054165433017191313M12151.5×60°
2.9
HJ12103505221462.53040.5251717M16301.5×60°
3.5
HJ12-1103505218562.53040.5221517M14301.5×60°
3.6
HJ151496286228634334322120M20401.5×60°
9.6
HJ15-1149628625.55634334322120M20401.5×60°
9.5
HJ24-1159.58090259104.55055322140M20553.0×60°
14.3
